# SpringContext源码(1)-Xml上下文初始化与Bean获取

本系列主要介绍了SpringContext框架中，通过纯xml配置来初始化一个ApplicationContext，并通过class 参数来获取实例bean的过程，本节主要介绍了学习过程中的配置文件，以及初始化ClassPathXmlApplicationContext实例过程中的 第一部分，即处理入参字符串的部分

# 1. 环境准备

# 1.1. pom.xml

    <!-- https://mvnrepository.com/artifact/org.springframework/spring-context -->
    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-context</artifactId>
        <version>5.1.8.RELEASE</version>
    </dependency>
1
2
3
4
5
6

# 1.2. application-context.xml

文件application-context.xml位于src/main/resources目录下，bean定义如下：

    <bean id="myBean" class="com.kkyeer.taste.Person">
        <property name="age" value="12"/>
        <property name="name" value="Zhang San"/>
    </bean>
1
2
3
4

# 1.3. BeanClass类

Person.java类包含age,name两个Field，入口类比较简单，先从application-context.xml文件中加载一个ApplicationContext，再通过getBean(Person.class)方法获取Bean，最后打印验证

# 1.4. 应用入口

public class TasteSpring {
    public static void main(String[] args) {
        ApplicationContext applicationContext = new ClassPathXmlApplicationContext("application-context.xml");
        Person person = applicationContext.getBean(Person.class);
        System.out.println(person.getName());
    }
}
1
2
3
4
5
6
7

# 2.1 初始化上下文

new ClassPathXmlApplicationContext("a-c.xml")

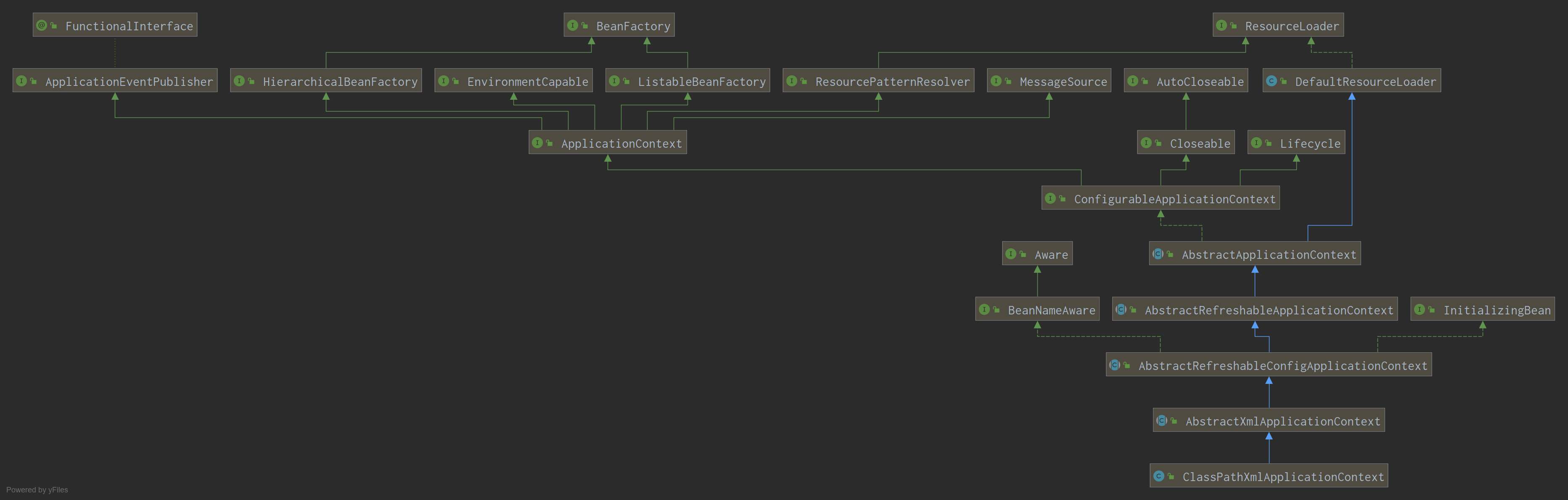

# 2.1.1 UML

UML

# 2.1.2 构造方法

new ClassPathXmlApplicationContext("a-c.xml")直接调用到：

    public ClassPathXmlApplicationContext(String configLocation) throws BeansException {
        this(new String[] {configLocation}, true, null);
    }
1
2
3

此构造方法显式调用到ClassPathXmlApplicationContext的另一个构造方法

    public ClassPathXmlApplicationContext(
            String[] configLocations, boolean refresh, @Nullable ApplicationContext parent)
            throws BeansException {
        super(parent);
        setConfigLocations(configLocations);
        if (refresh) {
            refresh();
        }
    }
1
2
3
4
5
6
7
8
9
  1. 调用父类的参数为(String[])的构造方法
  2. 调用setConfigLocations(configLocations)方法
  3. refresh

接下来，沿继承链调用父类的无参构造方法：

AbstractApplicationContext

    public AbstractApplicationContext() {
        this.resourcePatternResolver = getResourcePatternResolver();
    }
1
2
3

  1. 此构造方法没有显式调用任何父类的构造方法，则隐式调用直接父类的无参构造方法：

        public DefaultResourceLoader() {
        this.classLoader = ClassUtils.getDefaultClassLoader();
    }
    1
    2
    3

  2. AbstractApplicationContext定义的实例变量初始化

  3. 调用getResourcePatternResolver()获取并赋值到this.resourcePatternResolver

# 2.1.2.1. DefaultResourceLoader的无参构造方法

  1. 实例变量初始化

    • private final Set<ProtocolResolver> protocolResolvers = new LinkedHashSet<>(4);
    • private final Map<Class<?>, Map<Resource, ?>> resourceCaches = new ConcurrentHashMap<>(4);

  2. 执行构造方法体

private ClassLoader classLoader = = ClassUtils.getDefaultClassLoader();，这里的getDefaultClassLoader方法用来获取ClassLoader，优先级：当前线程的ContextClassLoader > ClassUtils.class的ClassLoadeer > SystemClassLoader

classLoader初始化完成后，DefaultResourceLoader的无参构造方法执行完成

# 2.1.2.1.1.2. AbstractApplicationContext定义的实例变量初始化
  • public static final String MESSAGE_SOURCE_BEAN_NAME = "messageSource";
  • public static final String LIFECYCLE_PROCESSOR_BEAN_NAME = "lifecycleProcessor";
  • public static final String APPLICATION_EVENT_MULTICASTER_BEAN_NAME = "applicationEventMulticaster";
  • private String id = ObjectUtils.identityToString(this);
  • private String displayName = ObjectUtils.identityToString(this);
  • private final AtomicBoolean active = new AtomicBoolean();false
  • private final List<BeanFactoryPostProcessor> beanFactoryPostProcessors = new ArrayList<>();这是个关键列表，存储了所有介入BeanFactory处理过程的实现BeanFactoryPostProcessor的实例
  • private final AtomicBoolean closed = new AtomicBoolean();false
  • private final Object startupShutdownMonitor = new Object();refresh和destroy方法的Monitor对象
  • private final Set<ApplicationListener<?>> applicationListeners = new LinkedHashSet<>();ApplicationListener对象
  • protected final Log logger = LogFactory.getLog(getClass());

注意，logger字段是protected的，子类可以访问，这里调用org.apache.commons.logging.LogFactory的getLog方法，返回的也是同一个包下的Log对象实例，实际执行过程中通过顺序尝试加载log4j_spi\log4j_slf4j\slf4j_spi\slf4j的核心类来确认当前使用的Logger，并通过LogAdapter类中的各种适配器将实际类中的方法适配到common.logging包下的Log接口的方法

# 2.1.2.1.1.3. 构造resourcePatternResolver

调用getResourcePatternResolver()获取并赋值到this.resourcePatternResolver，后者内部初始化一个PathMatchingResourcePatternResolver对象：

  1. 初始化pathMatcher：private PathMatcher pathMatcher = new AntPathMatcher();
  2. 将PathMatchingResourcePatternResolver内部的resourceLoader变量初始化为正在初始化的ApplicationContext

以上全部执行完毕后，所有无参构造方法调用完毕，继续执行

# 2.1.2.1.2. AbstractApplicationContext的setParent(parent)
    @Override
    public void setParent(@Nullable ApplicationContext parent) {
        this.parent = parent;
        if (parent != null) {
            Environment parentEnvironment = parent.getEnvironment();
            if (parentEnvironment instanceof ConfigurableEnvironment) {
                getEnvironment().merge((ConfigurableEnvironment) parentEnvironment);
            }
        }
    }
1
2
3
4
5
6
7
8
9
10

对于此次给定的初始化参数来说，由于parent为null，因此此处无操作

# 2.1.2.1.3. 逐级初始化剩下的ClassPathXmlApplicationContext父类的实例变量
  1. AbstractRefreshableApplicationContext:
    • private final Object beanFactoryMonitor = new Object();：这是BeanFactory创建时的Monitor对象
  2. AbstractRefreshableConfigApplicationContext:
    • private boolean setIdCalled = false;
  3. AbstractXmlApplicationContext:
    • private boolean validating = true;

至此ClassPathXmlApplicationContext显式调用的super(parent)构造方法全部执行完成

# 2.1.3 路径字符串数组解析为绝对路径

setConfigLocations(configLocations) 这里configLocations是字符串数组: ["application-context.xml"]，这个方法的方法体为：

    /**
     * Set the config locations for this application context.
     * <p>If not set, the implementation may use a default as appropriate.
     */
    public void setConfigLocations(@Nullable String... locations) {
        if (locations != null) {
            Assert.noNullElements(locations, "Config locations must not be null");
            this.configLocations = new String[locations.length];
            for (int i = 0; i < locations.length; i++) {
                this.configLocations[i] = resolvePath(locations[i]).trim();
            }
        }
        else {
            this.configLocations = null;
        }
    }
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

校验输入后，遍历传入的configLocations数组，对每个元素分别调用resolvPath()方法并存入this.configLocations数组

# 2.1.3.1 用系统的环境变量替换Config Location字符串中的PlaceholderresolvePath方法

    /**
     * Resolve the given path, replacing placeholders with corresponding
     * environment property values if necessary. Applied to config locations.
     * @param path the original file path
     * @return the resolved file path
     * @see org.springframework.core.env.Environment#resolveRequiredPlaceholders(String)
     */
    protected String resolvePath(String path) {
        return getEnvironment().resolveRequiredPlaceholders(path);
    }
1
2
3
4
5
6
7
8
9
10

获取ApplictionContext的environment，为空则new StandardEnvironment()并放入

# 2.1.3.2 StandardEnvironment的初始化

此类的父类为AbstractEnvironment，StandardEnvironment在父类基础上复写了customizePropertySources方法，大部分初始化及方法都在父类中，下面是父类AbstractEnvironment初始化的过程

  1. AbstractEnvironment的实例变量初始化

    • private final MutablePropertySources propertySources = new MutablePropertySources(); 父类内部维护了一个MutablePropertySources类型的propertySources变量，此类型本质上是CopyOnWriteArrayList<PropertySource>，而PropertySource是对Map对象（或其实现等K-V对容器）的再包装，子类需要提供根据key获取值、删除某键值对等方法

    • private final ConfigurablePropertyResolver propertyResolver = new PropertySourcesPropertyResolver(this.propertySources);，propertyResolver是Environment的核心成员变量，其他的属性等均是为此成员变量服务的，在AbstractEnvironment初始化过程中，将内部维护的propertySources属性传递给新初始化的ConfigurablePropertyResolver实例，PropertySourcesPropertyResolver主要是复写了父类的getProperty方法,主要的初始化工作由父类AbstractPropertyResolver完成：主要是final类型字符串常量的初始化

AbstractEnvironment的无参构造方法调用了customizePropertySources(this.propertySources);方法，StandardEnvironment复写了此方法，加载以下两部分Property：

  1. "systemProperties"，值为System.getProperties()返回的map包装成的PropertiesPropertySource
  2. "systemEnvironment"，值为System.getenv()返回的map包装成的SystemEnvironmentPropertySource，值得一提的是如果提供了spring.properties文件并指定spring.getenv.ignore=false，则不加载

# 2.1.3.3 解析Placeholder

实际调用的是AbstractEnvironment类的resolveRequiredPlaceholders(String text)方法：

    @Override
    public String resolveRequiredPlaceholders(String text) throws IllegalArgumentException {
        return this.propertyResolver.resolveRequiredPlaceholders(text);
    }
1
2
3
4

调用了propertyResolver的对应方法

    @Override
    public String resolveRequiredPlaceholders(String text) throws IllegalArgumentException {
        if (this.strictHelper == null) {
            this.strictHelper = createPlaceholderHelper(false);
        }
        return doResolvePlaceholders(text, this.strictHelper);
    }
1
2
3
4
5
6
7

其中createPlaceholderHelper(false)为核心方法：

    private PropertyPlaceholderHelper createPlaceholderHelper(boolean ignoreUnresolvablePlaceholders) {
        return new PropertyPlaceholderHelper(this.placeholderPrefix, this.placeholderSuffix,
                this.valueSeparator, ignoreUnresolvablePlaceholders);
    }
1
2
3
4

这个类是一个辅助类，用来把对应字符串的占位符替换成已经加载的相关property，比如字符串 "${abcd}"会被替换成abcd对应的property值返回

# 2.1.4. refresh过程

ClassPathXmlApplicationContext没有复写此方法，实际调用的是父类AbstractApplicationContext的refresh方法，在这个方法中会进行Bean的初始化，具体的过程参考refresh过程

# 2.2 获取单例Bean

````applicationContext.getBean(Person.class)```执行过程中，实际调用Context内部的BeanFactory的getBean方法，这可以视为装饰器模式的实际应用：

    @Override
    public <T> T getBean(Class<T> requiredType) throws BeansException {
        assertBeanFactoryActive();
        return getBeanFactory().getBean(requiredType);
    }
1
2
3
4
5

  1. 断言BeanFactory的状态：断言当前的上下文是否状态处于active且非closed，对于ClassPathXmlApplicationContext而言，BeanFactory的状态由内部的BeanFactory来维护

  2. 获取BeanFactory，调用BeanFactory的getBean方法来获取Bean，对于ClassPathXmlApplicationContext来说，内部的BeanFactory是DefaultListableBeanFactory类，所以调用的也是这个类的getBean方法：

        public <T> T getBean(Class<T> requiredType, @Nullable Object... args) throws BeansException {
        Assert.notNull(requiredType, "Required type must not be null");
        Object resolved = resolveBean(ResolvableType.forRawClass(requiredType), args, false);
        if (resolved == null) {
            throw new NoSuchBeanDefinitionException(requiredType);
        }
        return (T) resolved;
    }
    1
    2
    3
    4
    5
    6
    7
    8
    1. 根据Class获取ResolvableType
    2. 根据ResolvableType获取Bean

# 2.2.1 根据Class获取ResolvableType

此类型是对java.lang.reflect.Type的封装（装饰模式）

    public static ResolvableType forRawClass(@Nullable Class<?> clazz) {
        return new ResolvableType(clazz) {
            @Override
            public ResolvableType[] getGenerics() {
                return EMPTY_TYPES_ARRAY;
            }
            @Override
            public boolean isAssignableFrom(Class<?> other) {
                return (clazz == null || ClassUtils.isAssignable(clazz, other));
            }
            @Override
            public boolean isAssignableFrom(ResolvableType other) {
                Class<?> otherClass = other.getRawClass();
                return (otherClass != null && (clazz == null || ClassUtils.isAssignable(clazz, otherClass)));
            }
        };
    }
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

# 2.2.2 根据ResolvableType获取Bean

    @Nullable
    private <T> T resolveBean(ResolvableType requiredType, @Nullable Object[] args, boolean nonUniqueAsNull) {
        NamedBeanHolder<T> namedBean = resolveNamedBean(requiredType, args, nonUniqueAsNull);
        if (namedBean != null) {
            return namedBean.getBeanInstance();
        }
        BeanFactory parent = getParentBeanFactory();
        if (parent instanceof DefaultListableBeanFactory) {
            return ((DefaultListableBeanFactory) parent).resolveBean(requiredType, args, nonUniqueAsNull);
        }
        else if (parent != null) {
            ObjectProvider<T> parentProvider = parent.getBeanProvider(requiredType);
            if (args != null) {
                return parentProvider.getObject(args);
            }
            else {
                return (nonUniqueAsNull ? parentProvider.getIfUnique() : parentProvider.getIfAvailable());
            }
        }
        return null;
    }
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
  1. 尝试获取NamedBeanHolder
  2. 如果第一步未获取成功，则尝试上溯父BeanFactory加载Bean：
    1. 如果父BeanFactory是DefaultListableBeanFactory类型，则递归调用resolveBean方法
    2. 否则调用parent.getBeanProvider(requiredType)，然后调用相关方法获取Bean

# 2.2.2.1 获取NamedBeanHolder

    @Nullable
    private <T> NamedBeanHolder<T> resolveNamedBean(
            ResolvableType requiredType, @Nullable Object[] args, boolean nonUniqueAsNull) throws BeansException {

        Assert.notNull(requiredType, "Required type must not be null");
        String[] candidateNames = getBeanNamesForType(requiredType);

        if (candidateNames.length > 1) {
            List<String> autowireCandidates = new ArrayList<>(candidateNames.length);
            for (String beanName : candidateNames) {
                if (!containsBeanDefinition(beanName) || getBeanDefinition(beanName).isAutowireCandidate()) {
                    autowireCandidates.add(beanName);
                }
            }
            if (!autowireCandidates.isEmpty()) {
                candidateNames = StringUtils.toStringArray(autowireCandidates);
            }
        }

        if (candidateNames.length == 1) {
            String beanName = candidateNames[0];
            return new NamedBeanHolder<>(beanName, (T) getBean(beanName, requiredType.toClass(), args));
        }
        else if (candidateNames.length > 1) {
            Map<String, Object> candidates = new LinkedHashMap<>(candidateNames.length);
            for (String beanName : candidateNames) {
                if (containsSingleton(beanName) && args == null) {
                    Object beanInstance = getBean(beanName);
                    candidates.put(beanName, (beanInstance instanceof NullBean ? null : beanInstance));
                }
                else {
                    candidates.put(beanName, getType(beanName));
                }
            }
            String candidateName = determinePrimaryCandidate(candidates, requiredType.toClass());
            if (candidateName == null) {
                candidateName = determineHighestPriorityCandidate(candidates, requiredType.toClass());
            }
            if (candidateName != null) {
                Object beanInstance = candidates.get(candidateName);
                if (beanInstance == null || beanInstance instanceof Class) {
                    beanInstance = getBean(candidateName, requiredType.toClass(), args);
                }
                return new NamedBeanHolder<>(candidateName, (T) beanInstance);
            }
            if (!nonUniqueAsNull) {
                throw new NoUniqueBeanDefinitionException(requiredType, candidates.keySet());
            }
        }

        return null;
    }
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
  1. 根据Class对象查找可能的BeanName数组，查找出了多个BeanName，过滤BeanName数组，只留下beanDefinitionMap没有的，或者AutowireCandidate的Bean的Name
  2. 如果上面过滤以后，只剩一个BeanName，则调用getBean的重载方法getBean(String name, @Nullable Class<T> requiredType, @Nullable Object... args)来获取Bean实例，跟剩下的这个BeanName一起包裹到一个NamedBeanHolder对象中返回
  3. 如果第2步过滤以后，还有多个BeanName，则调用匹配到多个BeanName的逻辑
# 2.2.2.1.1 根据Class对象获取BeanName数组
    @Override
    public String[] getBeanNamesForType(ResolvableType type) {
        Class<?> resolved = type.resolve();
        if (resolved != null && !type.hasGenerics()) {
            return getBeanNamesForType(resolved, true, true);
        }
        else {
            return doGetBeanNamesForType(type, true, true);
        }
    }
1
2
3
4
5
6
7
8
9
10
  1. 对于目标Class没有泛型定义的，调用重载方法getBeanNamesForType(resolved, true, true)
  2. 对于有泛型定义的Class对象，调用doGetBeanNamesForType(type, true, true)方法来获取BeanName数组
# 2.2.2.1.1.1 非泛型类获取BeanName数组
    @Override
    public String[] getBeanNamesForType(@Nullable Class<?> type, boolean includeNonSingletons, boolean allowEagerInit) {
        if (!isConfigurationFrozen() || type == null || !allowEagerInit) {
            return doGetBeanNamesForType(ResolvableType.forRawClass(type), includeNonSingletons, allowEagerInit);
        }
        Map<Class<?>, String[]> cache =
                (includeNonSingletons ? this.allBeanNamesByType : this.singletonBeanNamesByType);
        String[] resolvedBeanNames = cache.get(type);
        if (resolvedBeanNames != null) {
            return resolvedBeanNames;
        }
        resolvedBeanNames = doGetBeanNamesForType(ResolvableType.forRawClass(type), includeNonSingletons, true);
        if (ClassUtils.isCacheSafe(type, getBeanClassLoader())) {
            cache.put(type, resolvedBeanNames);
        }
        return resolvedBeanNames;
    }
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
  1. 获取Class对象到String[]数组的缓存:如果仅查找单例则this.singletonBeanNamesByType，否则this.allBeanNamesByType，在此缓存里查找，查找到直接返回对应的BeanName数组
  2. 如果缓存没有查找到，则还是调用doGetBeanNamesForType(ResolvableType.forRawClass(type), includeNonSingletons, true)方法来获取实例BeanName数组
  3. 校验Class是否由当前上下文的Classloader加载的，如果是，则把获取到的Class到BeanName数组放入缓存
# 2.2.2.1.1.2 获取BeanName数组的核心方法：doGetBeanNamesForType

    private String[] doGetBeanNamesForType(ResolvableType type, boolean includeNonSingletons, boolean allowEagerInit) {
        List<String> result = new ArrayList<>();

        // Check all bean definitions.
        for (String beanName : this.beanDefinitionNames) {
            // Only consider bean as eligible if the bean name
            // is not defined as alias for some other bean.
            if (!isAlias(beanName)) {
                try {
                    RootBeanDefinition mbd = getMergedLocalBeanDefinition(beanName);
                    // Only check bean definition if it is complete.
                    if (!mbd.isAbstract() && (allowEagerInit ||
                            (mbd.hasBeanClass() || !mbd.isLazyInit() || isAllowEagerClassLoading()) &&
                                    !requiresEagerInitForType(mbd.getFactoryBeanName()))) {
                        // In case of FactoryBean, match object created by FactoryBean.
                        boolean isFactoryBean = isFactoryBean(beanName, mbd);
                        BeanDefinitionHolder dbd = mbd.getDecoratedDefinition();
                        boolean matchFound =
                                (allowEagerInit || !isFactoryBean ||
                                        (dbd != null && !mbd.isLazyInit()) || containsSingleton(beanName)) &&
                                (includeNonSingletons ||
                                        (dbd != null ? mbd.isSingleton() : isSingleton(beanName))) &&
                                isTypeMatch(beanName, type);
                        if (!matchFound && isFactoryBean) {
                            // In case of FactoryBean, try to match FactoryBean instance itself next.
                            beanName = FACTORY_BEAN_PREFIX + beanName;
                            matchFound = (includeNonSingletons || mbd.isSingleton()) && isTypeMatch(beanName, type);
                        }
                        if (matchFound) {
                            result.add(beanName);
                        }
                    }
                }
                catch (CannotLoadBeanClassException ex) {
                    if (allowEagerInit) {
                        throw ex;
                    }
                    onSuppressedException(ex);
                }
                catch (BeanDefinitionStoreException ex) {
                    if (allowEagerInit) {
                        throw ex;
                    }
                    onSuppressedException(ex);
                }
            }
        }

        // Check manually registered singletons too.
        for (String beanName : this.manualSingletonNames) {
            try {
                // In case of FactoryBean, match object created by FactoryBean.
                if (isFactoryBean(beanName)) {
                    if ((includeNonSingletons || isSingleton(beanName)) && isTypeMatch(beanName, type)) {
                        result.add(beanName);
                        // Match found for this bean: do not match FactoryBean itself anymore.
                        continue;
                    }
                    // In case of FactoryBean, try to match FactoryBean itself next.
                    beanName = FACTORY_BEAN_PREFIX + beanName;
                }
                // Match raw bean instance (might be raw FactoryBean).
                if (isTypeMatch(beanName, type)) {
                    result.add(beanName);
                }
            }
            catch (NoSuchBeanDefinitionException ex) {
            }
        }

        return StringUtils.toStringArray(result);
    }
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
  1. 遍历当前BeanFactory的beanDefinitionNames缓存，这个缓存里存储了所有的BeanName，这里只处理非alias的BeanName：
    1. 获取RootBeanDefinition
    2. 校验获取到的bd是否complete，需要满足下面所有条件
      1. 非抽象类
      2. 满足下列所有条件
        1. 满足下列条件之一
          • 允许EagerInit
          • 满足下列条件之一
            • bd已经解析出BeanClass
            • bd非懒加载
            • beanFactory允许饿汉式加载Class
        2. 不需要EagerInit(Bean不是未初始化完成的FactoryBean)
    3. 判断类型是否匹配到,需要满足下列所有条件：
      1. 下列条件之一
        • 允许EagerInit
        • 非FactoryBean
        • bd内部的decoratedDefinition非空或者bd非懒加载
        • 当前BeanFactory已经初始化完成beanName对应的bean
      2. 下列条件之一
        • 在非单例里查找
        • 只查找单例且Bean确实是单例
      3. BeanFactory内部此BeanName对应的Bean实例与目标ResolvableType匹配：
        1. 对于FactoryBean，校验的是FactoryBean获取的Object的类型是否与ResolvableType匹配
        2. 是否匹配，调用的是ResolvableType的isAssignableFrom方法，实际是ClassUtils.isAssignable方法
    4. 如果上一步没有匹配到而且是FactoryBean，那么试试匹配FactoryBean本身类型是否是目标类型
    5. 如果第3，4步匹配到了，则把当前迭代的BeanName放入最终返回的结果数组里
  2. 遍历当前BeanFactory的manualSingletonName缓存，这个缓存里存储了所有的BeanName，这里只处理非alias的BeanName：
    1. 如果是工厂类，判断FactoryBean和其创建的对象是否类型匹配
    2. 如果不是，直接判断是否类型匹配
    3. 如果第1，2步匹配到了，则把当前迭代的BeanName放入最终返回的结果数组里
# 2.2.2.1.2 根据BeanName获取到Bean实例的过程
    public <T> T getBean(String name, @Nullable Class<T> requiredType, @Nullable Object... args)
            throws BeansException {

        return doGetBean(name, requiredType, args, false);
    }
1
2
3
4
5

到

    protected <T> T doGetBean(final String name, @Nullable final Class<T> requiredType,
            @Nullable final Object[] args, boolean typeCheckOnly) throws BeansException {

        final String beanName = transformedBeanName(name);
        Object bean;

        // Eagerly check singleton cache for manually registered singletons.
        Object sharedInstance = getSingleton(beanName);
        if (sharedInstance != null && args == null) {
            if (logger.isTraceEnabled()) {
                if (isSingletonCurrentlyInCreation(beanName)) {
                    logger.trace("Returning eagerly cached instance of singleton bean '" + beanName +
                            "' that is not fully initialized yet - a consequence of a circular reference");
                }
                else {
                    logger.trace("Returning cached instance of singleton bean '" + beanName + "'");
                }
            }
            bean = getObjectForBeanInstance(sharedInstance, name, beanName, null);
        }

        else {
            // Fail if we're already creating this bean instance:
            // We're assumably within a circular reference.
            if (isPrototypeCurrentlyInCreation(beanName)) {
                throw new BeanCurrentlyInCreationException(beanName);
            }

            // Check if bean definition exists in this factory.
            BeanFactory parentBeanFactory = getParentBeanFactory();
            if (parentBeanFactory != null && !containsBeanDefinition(beanName)) {
                // Not found -> check parent.
                String nameToLookup = originalBeanName(name);
                if (parentBeanFactory instanceof AbstractBeanFactory) {
                    return ((AbstractBeanFactory) parentBeanFactory).doGetBean(
                            nameToLookup, requiredType, args, typeCheckOnly);
                }
                else if (args != null) {
                    // Delegation to parent with explicit args.
                    return (T) parentBeanFactory.getBean(nameToLookup, args);
                }
                else if (requiredType != null) {
                    // No args -> delegate to standard getBean method.
                    return parentBeanFactory.getBean(nameToLookup, requiredType);
                }
                else {
                    return (T) parentBeanFactory.getBean(nameToLookup);
                }
            }

            if (!typeCheckOnly) {
                markBeanAsCreated(beanName);
            }

            try {
                final RootBeanDefinition mbd = getMergedLocalBeanDefinition(beanName);
                checkMergedBeanDefinition(mbd, beanName, args);

                // Guarantee initialization of beans that the current bean depends on.
                String[] dependsOn = mbd.getDependsOn();
                if (dependsOn != null) {
                    for (String dep : dependsOn) {
                        if (isDependent(beanName, dep)) {
                            throw new BeanCreationException(mbd.getResourceDescription(), beanName,
                                    "Circular depends-on relationship between '" + beanName + "' and '" + dep + "'");
                        }
                        registerDependentBean(dep, beanName);
                        try {
                            getBean(dep);
                        }
                        catch (NoSuchBeanDefinitionException ex) {
                            throw new BeanCreationException(mbd.getResourceDescription(), beanName,
                                    "'" + beanName + "' depends on missing bean '" + dep + "'", ex);
                        }
                    }
                }

                // Create bean instance.
                if (mbd.isSingleton()) {
                    sharedInstance = getSingleton(beanName, () -> {
                        try {
                            return createBean(beanName, mbd, args);
                        }
                        catch (BeansException ex) {
                            // Explicitly remove instance from singleton cache: It might have been put there
                            // eagerly by the creation process, to allow for circular reference resolution.
                            // Also remove any beans that received a temporary reference to the bean.
                            destroySingleton(beanName);
                            throw ex;
                        }
                    });
                    bean = getObjectForBeanInstance(sharedInstance, name, beanName, mbd);
                }

                else if (mbd.isPrototype()) {
                    // It's a prototype -> create a new instance.
                    Object prototypeInstance = null;
                    try {
                        beforePrototypeCreation(beanName);
                        prototypeInstance = createBean(beanName, mbd, args);
                    }
                    finally {
                        afterPrototypeCreation(beanName);
                    }
                    bean = getObjectForBeanInstance(prototypeInstance, name, beanName, mbd);
                }

                else {
                    String scopeName = mbd.getScope();
                    final Scope scope = this.scopes.get(scopeName);
                    if (scope == null) {
                        throw new IllegalStateException("No Scope registered for scope name '" + scopeName + "'");
                    }
                    try {
                        Object scopedInstance = scope.get(beanName, () -> {
                            beforePrototypeCreation(beanName);
                            try {
                                return createBean(beanName, mbd, args);
                            }
                            finally {
                                afterPrototypeCreation(beanName);
                            }
                        });
                        bean = getObjectForBeanInstance(scopedInstance, name, beanName, mbd);
                    }
                    catch (IllegalStateException ex) {
                        throw new BeanCreationException(beanName,
                                "Scope '" + scopeName + "' is not active for the current thread; consider " +
                                "defining a scoped proxy for this bean if you intend to refer to it from a singleton",
                                ex);
                    }
                }
            }
            catch (BeansException ex) {
                cleanupAfterBeanCreationFailure(beanName);
                throw ex;
            }
        }

        // Check if required type matches the type of the actual bean instance.
        if (requiredType != null && !requiredType.isInstance(bean)) {
            try {
                T convertedBean = getTypeConverter().convertIfNecessary(bean, requiredType);
                if (convertedBean == null) {
                    throw new BeanNotOfRequiredTypeException(name, requiredType, bean.getClass());
                }
                return convertedBean;
            }
            catch (TypeMismatchException ex) {
                if (logger.isTraceEnabled()) {
                    logger.trace("Failed to convert bean '" + name + "' to required type '" +
                            ClassUtils.getQualifiedName(requiredType) + "'", ex);
                }
                throw new BeanNotOfRequiredTypeException(name, requiredType, bean.getClass());
            }
        }
        return (T) bean;
    }
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
  1. 尝试从singletonObjects或者earlySingletonObjects中获取单例实例
  2. 如果第1步获取到bean实例，则调用getObjectForBeanInstance方法将bean实例转换为对象：
    1. 如果不是FactoryBean或者需要获取FactoryBean本身，返回传入的Bean实例
    2. 如果是FactoryBean且需要获取其生产的Object，则：
      1. 尝试从factoryBeanObjectCache中获取已缓存的Object
      2. 尝试从FactoryBean中获取Object
  3. 如果第1步未获取到bean实例，则可能当前处于循环引用的过程
    1. 当前BeanFactory不包含对应的bd：递归调用父BeanFactory的各种获取Bean的重载方法获取Bean
    2. 当前BeanFactory包含对应的bd：初始化Bean，调用getObjectForBeanInstance方法将bean实例转换为对象
  4. 判断2或者3获取到的bean是否已经是目标类型，如果不是，调用BeanFactory的TypeConverter来进行类型转换
  5. 返回bean
# 2.2.2.1.3 匹配到多个beanName的策略
  1. 如果是@Primary注解的Bean，则返回第一个匹配到的BeanName
  2. 如果上面没有获取到，则获取最高优先级的BeanName
  3. 1，2步应该可以获取到唯一的BeanName，获取对象并返回
Last Updated: 1/22/2024, 8:56:53 AM
