SpringContext源码(2)-refresh方法

AbstractApplicationContext类作为所有Context的共同父类，定义了refresh()方法，代码如下：

    /**
     * Load or refresh the persistent representation of the configuration,
     * which might an XML file, properties file, or relational database schema.
     * <p>As this is a startup method, it should destroy already created singletons
     * if it fails, to avoid dangling resources. In other words, after invocation
     * of that method, either all or no singletons at all should be instantiated.
     * @throws BeansException if the bean factory could not be initialized
     * @throws IllegalStateException if already initialized and multiple refresh
     * attempts are not supported
     */
    @Override
    public void refresh() throws BeansException, IllegalStateException {
        synchronized (this.startupShutdownMonitor) {
            // Prepare this context for refreshing.
            prepareRefresh();

            // Tell the subclass to refresh the internal bean factory.
            ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();

            // Prepare the bean factory for use in this context.
            prepareBeanFactory(beanFactory);

            try {
                // Allows post-processing of the bean factory in context subclasses.
                postProcessBeanFactory(beanFactory);

                // Invoke factory processors registered as beans in the context.
                invokeBeanFactoryPostProcessors(beanFactory);

                // Register bean processors that intercept bean creation.
                registerBeanPostProcessors(beanFactory);

                // Initialize message source for this context.
                initMessageSource();

                // Initialize event multicaster for this context.
                initApplicationEventMulticaster();

                // Initialize other special beans in specific context subclasses.
                onRefresh();

                // Check for listener beans and register them.
                registerListeners();

                // Instantiate all remaining (non-lazy-init) singletons.
                finishBeanFactoryInitialization(beanFactory);

                // Last step: publish corresponding event.
                finishRefresh();
            }

            catch (BeansException ex) {
                if (logger.isWarnEnabled()) {
                    logger.warn("Exception encountered during context initialization - " +
                            "cancelling refresh attempt: " + ex);
                }

                // Destroy already created singletons to avoid dangling resources.
                destroyBeans();

                // Reset 'active' flag.
                cancelRefresh(ex);

                // Propagate exception to caller.
                throw ex;
            }

            finally {
                // Reset common introspection caches in Spring's core, since we
                // might not ever need metadata for singleton beans anymore...
                resetCommonCaches();
            }
        }
    }

整个过程分下面的几个步骤：

1. 准备操作
   1. prepareRefresh();
   2. 重新加载所有的bean定义到新的beanFactory：ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();
   3. 准备beanPostProcessor,Environment等:prepareBeanFactory(beanFactory);
2. PostProcessBeanFactory
   1. 执行Context子类的postProcessBeanFactory(beanFactory)方法
   2. 初始化并调用所有BeanFactoryPostProcessor类型的Bean的对应方法
3. 注册BeanPostProcessors：registerBeanPostProcessors(beanFactory);
4. 初始化非懒加载的Bean
   1. MessageSource
   2. ApplicationEventMulticaster
   3. onRefresh()
   4. ApplicationListener
   5. 所有非@Lazy的单例bean
5. 结束并清理缓存

1. 准备操作

1. prepareRefresh()方法的执行过程如方法名所示，主要进行环境变量的操作、日志的打印以及某些listener的处理，主要过程如下：
   1. 更改当前Context的状态，startupDate=当前时间;closed=false;active=true;
   2. 打印debug记录
   3. 初始化上下文中的propertySources占位，在refresh之前已经完成
   4. 初始化earlyApplicationListeners和applicationListeners，当前用例里为空，注意存储使用的是LinkedHashSet，是有序set
   5. 初始化earlyApplicationEvents为空的LinkedHashSet
2. 加载Bean定义
3. 初始化BeanPostProcessor

1.1 重新加载新的beanFactory

protected ConfigurableListableBeanFactory obtainFreshBeanFactory() {
    refreshBeanFactory();
    return getBeanFactory();
}

方法中主要是调用了方法refreshBeanFactory()，然后返回getBeanFactory()的执行结果，这两个方法在AbstractApplicationContext中均为抽象方法，对于本例来说，实际由子类 AbstractRefreshableApplicationContext实现

1.1.1 refreshBeanFactory()

    /**
     * This implementation performs an actual refresh of this context's underlying
     * bean factory, shutting down the previous bean factory (if any) and
     * initializing a fresh bean factory for the next phase of the context's lifecycle.
     */
    @Override
    protected final void refreshBeanFactory() throws BeansException {
        if (hasBeanFactory()) {
            destroyBeans();
            closeBeanFactory();
        }
        try {
            DefaultListableBeanFactory beanFactory = createBeanFactory();
            beanFactory.setSerializationId(getId());
            customizeBeanFactory(beanFactory);
            loadBeanDefinitions(beanFactory);
            synchronized (this.beanFactoryMonitor) {
                this.beanFactory = beanFactory;
            }
        }
        catch (IOException ex) {
            throw new ApplicationContextException("I/O error parsing bean definition source for " + getDisplayName(), ex);
        }
    }

执行过程分析：

1. 销毁当前所有已经创建的bean，关闭beanFactory
2. 创建一个新的beanFactory并赋值新序列号
3. 自定义beanFactory
4. 加载bean定义
5. 赋值给当前ApplicationContext的beanFactory

主要关注点应该在第2、3、4步中：

1.1.2 初始化BeanFactory

    protected DefaultListableBeanFactory createBeanFactory() {
        return new DefaultListableBeanFactory(getInternalParentBeanFactory());
    }

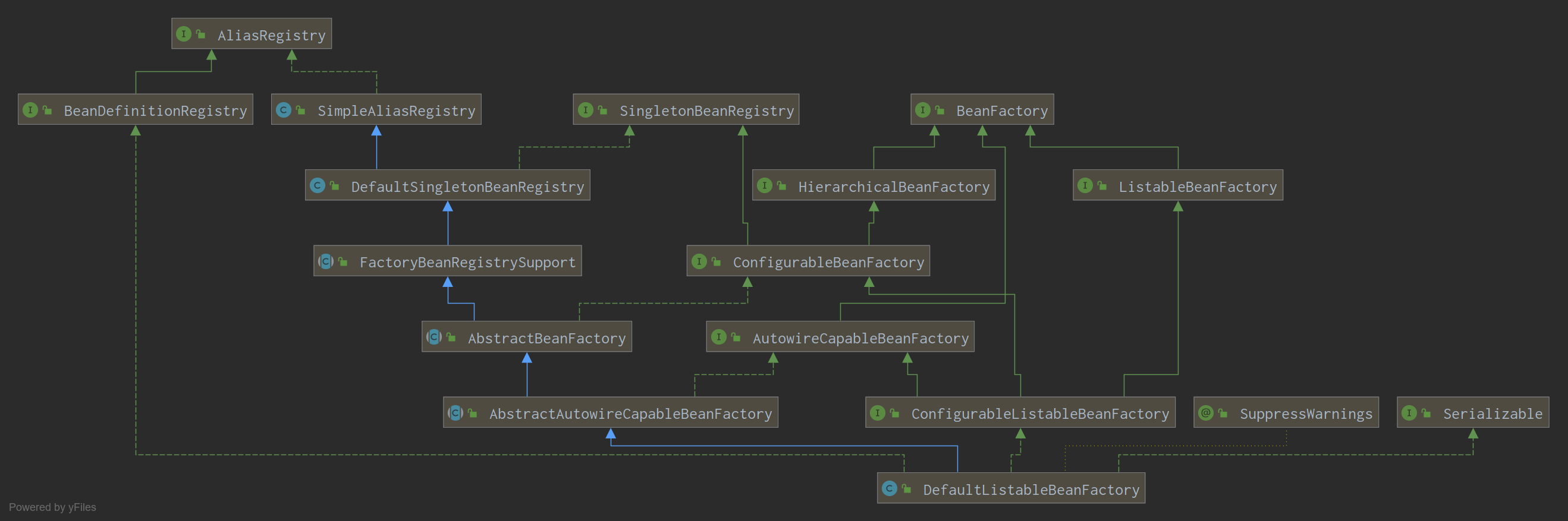

注意到初始化的BeanFactory类型为DefaultListableBeanFactory，且此处调用的是带参构造方法，参数类型为BeanFactory，这个参数后续会被设置为新BeanFactory的parentBeanFactory

1. 无参构造方法:

       public AbstractAutowireCapableBeanFactory() {
           super();
           ignoreDependencyInterface(BeanNameAware.class);
           ignoreDependencyInterface(BeanFactoryAware.class);
           ignoreDependencyInterface(BeanClassLoaderAware.class);
       }


2. 初始化过程的缓存

   1. 存储各种bean的缓存：

      • BeanName => Bean实例: Map<String, Object> singletonObjects,这个缓存会被并发访问且可预期的Size比较大，因此使用ConcurrentHashMap保证线程安全的同时，初始容量设置为256来减少初期的Map扩容
      • BeanName => ObjectFactory: Map<String, ObjectFactory<?>> singletonFactories
      • 已注册的单例Bean名: Set<String> registeredSingletons
      • BeanName => disposable instance: Map<String, Object> disposableBeans
      • 正在创建的BeanName集合: NamedThreadLocal<String> currentlyCreatedBean
      • FactoryBean缓存: ConcurrentMap<String, BeanWrapper> factoryBeanInstanceCache
      • 工厂类 => 工厂方法: ConcurrentMap<Class<?>, Method[]> factoryMethodCandidateCache
      • 不处理的类和接口: Set<Class<?>> ignoredDependencyTypes和Set<Class<?>> ignoredDependencyInterfaces，后者默认放入被放入了BeanNameAware、BeanFactoryAware、BeanClassLoaderAware三个接口
      • 依赖Class到实例: Map<Class<?>, Object> resolvableDependencies
      • bean名到bean定义: Map<String, BeanDefinition> beanDefinitionMap:
      • 依赖class到bean名的数组，不管bean是否单例:Map<Class<?>, String[]> allBeanNamesByType
      • 依赖class到bean名的数组，bean是单例:Map<Class<?>, String[]> singletonBeanNamesByType
      • 按register顺序存储的beanDefinitionNames:private volatile List<String> beanDefinitionNames
      • 按register顺序存储的手动注册的单例:private volatile Set<String> manualSingletonNames

   2. BeanName之间映关系:

      • BeanName => 包含的BeanName集合: Map<String, Set<String>> containedBeanMap
      • BeanName => 依赖BeanName集合: Map<String, Set<String>> dependentBeanMap
      • BeanName => 处理中的依赖BeanName集合: private final Map<String, Set<String>> dependenciesForBeanMap = new ConcurrentHashMap<>(64);

   3. 工具类和状态值

      • ClassLoader：
      • beanMetaData的flag：是否缓存metaData，默认true
      • propertyEditorRegistrars：PropertyEditorRegistrar集合
      • 自定义的PeropertyEditors集合:Map<Class<?>, Class<? extends PropertyEditor>> customEditors，
      • String处理，比如注解内部的String处理为数组:List<StringValueResolver> embeddedValueResolvers
      • List<BeanPostProcessor> beanPostProcessors
      • 初始化策略:private InstantiationStrategy instantiationStrategy = new CglibSubclassingInstantiationStrategy();
      • 变量查询策略:private ParameterNameDiscoverer parameterNameDiscoverer
      • 自动注入处理:``````private AutowireCandidateResolver autowireCandidateResolver```

   4. Bean缓存变量和过程变量

      • ScopeName => Scope实例:Map<String, Scope> scopes
      • BeanName => 最终的BD:Map<String, RootBeanDefinition> mergedBeanDefinitions
      • 已经创建的Bean实例:Set<String> alreadyCreated
      • 正在Creating过程中的Bean:ThreadLocal<Object> prototypesCurrentlyInCreation

在初始化完成上述变量后

1. this.parentBeanFactory=parentBeanFactory
2. beanFactory被赋值序列号：类名@hashcode

1.1.3 customizeBeanFactory(beanFactory)

更新beanFactory的allowBeanDefinitionOverriding和allowCircularReferences属性

1.2 加载Bean定义

将所有的bean定义加载到内部的beanFactory，ClassPathXmlApplicationContext的父类AbstractXmlApplicationContext复写了这个方法：

@Override
protected void loadBeanDefinitions(DefaultListableBeanFactory beanFactory) throws BeansException, IOException {
    // Create a new XmlBeanDefinitionReader for the given BeanFactory.
    XmlBeanDefinitionReader beanDefinitionReader = new XmlBeanDefinitionReader(beanFactory);

    // Configure the bean definition reader with this context's
    // resource loading environment.
    beanDefinitionReader.setEnvironment(this.getEnvironment());
    beanDefinitionReader.setResourceLoader(this);
    beanDefinitionReader.setEntityResolver(new ResourceEntityResolver(this));

    // Allow a subclass to provide custom initialization of the reader,
    // then proceed with actually loading the bean definitions.
    initBeanDefinitionReader(beanDefinitionReader);
    loadBeanDefinitions(beanDefinitionReader);
}

1. XmlBeanDefinitionReader的初始化，传入当前的environment,resourceLoader和entityResolver变量
2. 调用子类initBeanDefinitionReader(beanDefinitionReader)方法
3. XmlBeanDefinitionReader加载Bean定义，先加载已经解析的Resource内部定义，再加载ConfigLocation内部定义，具体过程参见XML配置加载BeanDefinition

protected void loadBeanDefinitions(XmlBeanDefinitionReader reader) throws BeansException, IOException {
    Resource[] configResources = getConfigResources();
    if (configResources != null) {
        reader.loadBeanDefinitions(configResources);
    }
    String[] configLocations = getConfigLocations();
    if (configLocations != null) {
        reader.loadBeanDefinitions(configLocations);
    }
}

1.3 预热BeanFactory

在这一步之前，所有的beanDefinition已经被读取并存入beanFactory中，这一步在bean初始化之前，准备一些环境相关的bean：

    protected void prepareBeanFactory(ConfigurableListableBeanFactory beanFactory) {
        // Tell the internal bean factory to use the context's class loader etc.
        beanFactory.setBeanClassLoader(getClassLoader());
        beanFactory.setBeanExpressionResolver(new StandardBeanExpressionResolver(beanFactory.getBeanClassLoader()));
        beanFactory.addPropertyEditorRegistrar(new ResourceEditorRegistrar(this, getEnvironment()));

        // Configure the bean factory with context callbacks.
        beanFactory.addBeanPostProcessor(new ApplicationContextAwareProcessor(this));
        beanFactory.ignoreDependencyInterface(EnvironmentAware.class);
        beanFactory.ignoreDependencyInterface(EmbeddedValueResolverAware.class);
        beanFactory.ignoreDependencyInterface(ResourceLoaderAware.class);
        beanFactory.ignoreDependencyInterface(ApplicationEventPublisherAware.class);
        beanFactory.ignoreDependencyInterface(MessageSourceAware.class);
        beanFactory.ignoreDependencyInterface(ApplicationContextAware.class);

        // BeanFactory interface not registered as resolvable type in a plain factory.
        // MessageSource registered (and found for autowiring) as a bean.
        beanFactory.registerResolvableDependency(BeanFactory.class, beanFactory);
        beanFactory.registerResolvableDependency(ResourceLoader.class, this);
        beanFactory.registerResolvableDependency(ApplicationEventPublisher.class, this);
        beanFactory.registerResolvableDependency(ApplicationContext.class, this);

        // Register early post-processor for detecting inner beans as ApplicationListeners.
        beanFactory.addBeanPostProcessor(new ApplicationListenerDetector(this));

        // Detect a LoadTimeWeaver and prepare for weaving, if found.
        if (beanFactory.containsBean(LOAD_TIME_WEAVER_BEAN_NAME)) {
            beanFactory.addBeanPostProcessor(new LoadTimeWeaverAwareProcessor(beanFactory));
            // Set a temporary ClassLoader for type matching.
            beanFactory.setTempClassLoader(new ContextTypeMatchClassLoader(beanFactory.getBeanClassLoader()));
        }

        // Register default environment beans.
        if (!beanFactory.containsLocalBean(ENVIRONMENT_BEAN_NAME)) {
            beanFactory.registerSingleton(ENVIRONMENT_BEAN_NAME, getEnvironment());
        }
        if (!beanFactory.containsLocalBean(SYSTEM_PROPERTIES_BEAN_NAME)) {
            beanFactory.registerSingleton(SYSTEM_PROPERTIES_BEAN_NAME, getEnvironment().getSystemProperties());
        }
        if (!beanFactory.containsLocalBean(SYSTEM_ENVIRONMENT_BEAN_NAME)) {
            beanFactory.registerSingleton(SYSTEM_ENVIRONMENT_BEAN_NAME, getEnvironment().getSystemEnvironment());
        }
    }

1. 设置BeanClassLoader：与当前ApplicationContext相同
2. 设置BeanExpressionResolver：一个StandardBeanExpressionResolver实例
3. 新增PropertyEditorRegistrar
4. 新增BeanPostProcessor：ApplicationContextAwareProcessor
5. 忽略各种Aware：EnvironmentAware，EmbeddedValueResolverAware，ResourceLoaderAware，ApplicationEventPublisherAware，MessageSourceAware，ApplicationContextAware
6. 把beanFactory本身注册为ResolvableDependency，类型为BeanFactory
7. 把ApplicationContext本身注册为ResolvableDependency，类型是ResourceLoader，ApplicationEventPublisher，ApplicationContext
8. 新增BeanPostProcessor：ApplicationListenerDetector
9. 如果有定义LoadTimeWeaver，则新增BeanPostProcessor：LoadTimeWeaverAwareProcessor，并初始化临时ClassLoader:new ContextTypeMatchClassLoader
10. 将上下文内部的Environment注册为名叫"environment"的单例bean
11. 将上下文内部的Environment内部的SystemProperties注册为名叫"systemProperties"的单例bean
12. 将上下文内部的Environment内部的SystemEnvironment注册为名叫"systemEnvironment"的单例bean

在这里初始化并添加了两个BeanPostProcessor类型的对象:

• ApplicationContextAwareProcessor：这个类对Aware接口的bean有效，在bean实例初始化之前把ApplicationContext中的属性注入到bean中
• ApplicationListenerDetector：这个BeanPostProcessor对ApplicationListener接口的bean有效，在Bean初始化结束后，this.applicationContext.addApplicationListener((ApplicationListener<?>) bean);，值得一提的是，这个类覆写了.equals方法为return (this == other || (other instanceof ApplicationListenerDetector && this.applicationContext == ((ApplicationListenerDetector) other).applicationContext))，这样只要内部存有相同的applicationContext，则必定equals返回true，这样做的目的是保证在applicationContext存储BeanProcessor的map中，只有一个实例（ApplicationContext内部使用CopyOnWriteList存储BeanPostProcessor，而其remove时根据==和.equals()方法来判断对象是否存在）

2. postProcessBeanFactory

1. 执行子类的postProcessBeanFactory(beanFactory)方法，在AbstractApplicationContext里为空方法体
2. 初始化所有BeanFactoryPostProcessor类型的bean并调用对应接口方法，完成后处理 "loadTimeWeaver"

3. 注册BeanPostProcessors

1. 新增BeanPostProcessorChecker
2. 注册实现了PriorityOrdered接口的BeanPostProcessor
3. 注册实现了Ordered接口的BeanPostProcessor
4. 注册其余的BeanPostProcessor
5. 注册实现了MergedBeanDefinitionPostProcessor接口的BeanPostProcessor，注意，在往AbstractBeanFactory注册BeanPostProcessor时，会先remove再add以保证新注册的在List里排在后面
6. 新建一个ApplicationListenerDetector，添加到BeanPostProcessor最后（由于其复写了.equals()方法因此仍旧会移除原有的所有内部applicationContext相同的实例）

4. 初始化非懒加载的Bean

1. MessageSource

   beanName为"messageSource"的Bean，或DelegatingMessageSource实例

2. ApplicationEventMulticaster

   beanName为"applicationEventMulticaster"的Bean，或的bean，则使用，否则使用SimpleApplicationEventMulticaster实例

3. 调用子类的onRefresh()方法

4. ApplicationListener

   如果有ApplicationListener或者bean，将其注册到applicationEventMulticaster上，并且广播当前已经缓存的earlyEventsToProcess事件

5. 非懒加载的单例bean

   在beanFactory中的bean定义、环境bean、listener、processor全部准备好后，开始初始化其他还未初始化的单例bean，具体实现在AbstractApplicationContext的finishBeanFactoryInitialization方法：

       protected void finishBeanFactoryInitialization(ConfigurableListableBeanFactory beanFactory) {
           // Initialize conversion service for this context.
           if (beanFactory.containsBean(CONVERSION_SERVICE_BEAN_NAME) &&
                   beanFactory.isTypeMatch(CONVERSION_SERVICE_BEAN_NAME, ConversionService.class)) {
               beanFactory.setConversionService(
                       beanFactory.getBean(CONVERSION_SERVICE_BEAN_NAME, ConversionService.class));
           }

           // Register a default embedded value resolver if no bean post-processor
           // (such as a PropertyPlaceholderConfigurer bean) registered any before:
           // at this point, primarily for resolution in annotation attribute values.
           if (!beanFactory.hasEmbeddedValueResolver()) {
               beanFactory.addEmbeddedValueResolver(strVal -> getEnvironment().resolvePlaceholders(strVal));
           }

           // Initialize LoadTimeWeaverAware beans early to allow for registering their transformers early.
           String[] weaverAwareNames = beanFactory.getBeanNamesForType(LoadTimeWeaverAware.class, false, false);
           for (String weaverAwareName : weaverAwareNames) {
               getBean(weaverAwareName);
           }

           // Stop using the temporary ClassLoader for type matching.
           beanFactory.setTempClassLoader(null);

           // Allow for caching all bean definition metadata, not expecting further changes.
           beanFactory.freezeConfiguration();

           // Instantiate all remaining (non-lazy-init) singletons.
           beanFactory.preInstantiateSingletons();
       }


   1. 加载自定义的"conversionService"
   2. 初始化beanFactory的ValueResolver：strVal -> getEnvironment().resolvePlaceholders(strVal)
   3. 初始化LoadTimeWeaverAware，结束后清空临时ClassLoader
   4. 冻结当前的定义状态，准备初始化及提取MetaData
   5. 初始化自定义的单例Bean：preInstantiateSingletons()

5. 结束refresh()

    protected void finishRefresh() {
        // Clear context-level resource caches (such as ASM metadata from scanning).
        clearResourceCaches();

        // Initialize lifecycle processor for this context.
        initLifecycleProcessor();

        // Propagate refresh to lifecycle processor first.
        getLifecycleProcessor().onRefresh();

        // Publish the final event.
        publishEvent(new ContextRefreshedEvent(this));

        // Participate in LiveBeansView MBean, if active.
        LiveBeansView.registerApplicationContext(this);
    }

1. 清空当前上下文的resourceCaches
2. 初始化LifecycleProcessor：

   名称为"lifecycleProcessor"的Bean或者DefaultLifecycleProcessor类型的单例Bean，将之赋值给this.lifecycleProcessor属性

3. 调用this.lifecycleProcessor的onRefresh()方法:
   1. 寻找所有Lifecycle类的Bean
   2. 遍历上面的Bean，组装成phases，放入一个LifecycleGroup
   3. 按顺序调用LifecircleGroup的start方法
   4. 标记当前LifecycleProcessor的running为true
4. 发布ContextRefreshedEvent：ApplicationEventMulticaster实例广播事件
5. 向MBeanServer注册MBean

6. 清理缓存

主要是清空一些静态类的缓存：

    protected void resetCommonCaches() {
        ReflectionUtils.clearCache();
        AnnotationUtils.clearCache();
        ResolvableType.clearCache();
        CachedIntrospectionResults.clearClassLoader(getClassLoader());
    }

至此，ClassPathXmlApplicationContext的构造方法中的refresh()过程完成
