# SpringContext(6)-CreateBean

实际执行具体的bean创建的，是refresh过程新建的DefaultListableBeanFactory的父类AbstractAutowireCapableBeanFactory中的createBean方法：

    @Override
    protected Object createBean(String beanName, RootBeanDefinition mbd, @Nullable Object[] args)
            throws BeanCreationException {

        if (logger.isTraceEnabled()) {
            logger.trace("Creating instance of bean '" + beanName + "'");
        }
        RootBeanDefinition mbdToUse = mbd;

        // Make sure bean class is actually resolved at this point, and
        // clone the bean definition in case of a dynamically resolved Class
        // which cannot be stored in the shared merged bean definition.
        Class<?> resolvedClass = resolveBeanClass(mbd, beanName);
        if (resolvedClass != null && !mbd.hasBeanClass() && mbd.getBeanClassName() != null) {
            mbdToUse = new RootBeanDefinition(mbd);
            mbdToUse.setBeanClass(resolvedClass);
        }

        // Prepare method overrides.
        try {
            mbdToUse.prepareMethodOverrides();
        }
        catch (BeanDefinitionValidationException ex) {
            throw new BeanDefinitionStoreException(mbdToUse.getResourceDescription(),
                    beanName, "Validation of method overrides failed", ex);
        }

        try {
            // Give BeanPostProcessors a chance to return a proxy instead of the target bean instance.
            Object bean = resolveBeforeInstantiation(beanName, mbdToUse);
            if (bean != null) {
                return bean;
            }
        }
        catch (Throwable ex) {
            throw new BeanCreationException(mbdToUse.getResourceDescription(), beanName,
                    "BeanPostProcessor before instantiation of bean failed", ex);
        }

        try {
            Object beanInstance = doCreateBean(beanName, mbdToUse, args);
            if (logger.isTraceEnabled()) {
                logger.trace("Finished creating instance of bean '" + beanName + "'");
            }
            return beanInstance;
        }
        catch (BeanCreationException | ImplicitlyAppearedSingletonException ex) {
            // A previously detected exception with proper bean creation context already,
            // or illegal singleton state to be communicated up to DefaultSingletonBeanRegistry.
            throw ex;
        }
        catch (Throwable ex) {
            throw new BeanCreationException(
                    mbdToUse.getResourceDescription(), beanName, "Unexpected exception during bean creation", ex);
        }
    }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56

解析Bean对应的BeanClass
如果bean内部还没有BeanClass属性，则拷贝一份bd(beanDefinition的简称，下同)，并传入上一步解析的BeanClass
校验并准备所有的MethodOverride
初始化之前的钩子函数：调用可能的InstantiationAwareBeanPostProcessor，这些BeanPostProcessor可能用来生成代理类，如果这些BeanPostProcessor中生成了bean，则返回生成的bean不进行后续操作
调用doCreateBean方法来获取Bean实例
调用

# 1.1 解析Bean对应的BeanClass

BeanClass的确定按找下述顺序确定

bd里的beanClass是Class对象（刚读取xml配置后是String对象）时，则返回bd的beanClass属性
根据当前是否配置SecurityManager，来进行授权调用或非授权调用，调用的方法为doResolveBeanClass方法

# 1.1.1 doResolveBeanClass

获取当前BeanFactory的BeanClassLoader属性
判断是否需要调用动态类加载器，如果是则调用DecoratingClassLoaderexcludeClass(typeToMatch.getName())的方法
如果不需要动态类加载器，则调用evaluateBeanDefinitionString(className,bd)方法来获取类名最终的字符串，注意从版本4.2开始，类名定义中允许添加#{}占位符定义，此步骤主要就是进行#{}占位符的解析
1. 调用BeanFactory的内部维护的scope表，在表中获取bd相关的scope对应的Scope对象，
2. 调用this.beanExpressionResolver.evaluate(value, new BeanExpressionContext(this, scope))来获取最终的class字符串
判断上一步解析出的class字符串是否有变化，如果有变化，说明定义中有动态解析的部分，再判断是否已经解析出Class对象，解析出的话返回，
如果没有解析出，则尝试用BeanFactory的TempClassLoader来加载Class对象，加载成功则返回，否则继续尝试
如果上面全部未解析出，则调用BeanDefinition的resolveBeanClass(Classloader classloader)方法，此方法内部调用org.springframework.util包下的ClassUtils的forName(String,Classloader)方法，步骤如下：
1. 比对工具类维护的primitiveTypeNameMap中存储的primitiveClass的Map，判断是否primitive类型，是则返回对应Class对象
2. 比对工具内维护的commonClassCache缓存中存储的常用类，有则返回对应Class对象
3. "java.lang.String[]"类型的数组，则去掉后面的"[]"后缀后，递归调用forName方法获取Class，再根据Class类型返回对应的数组实例
4. "[Ljava.lang.String;"类型定义的数组，则去掉"[L"前缀，递归调用forName方法获取Class，再根据Class类型返回对应的数组实例
5. "[[I" or "[[Ljava.lang.String;"类型定义的数组，去掉"["前缀后，递归调用forName方法获取Class，再根据Class类型返回对应的数组实例
6. 如果上面都不符合，则调用传入的ClassLoader(为空则获取defaultClassLoader)来加载类Class.forName(name, false, clToUse)并返回Class，如果还是没有加载，则尝试把最后一个"."替换为"$"继续调用Class.forName方法来加载内部类，如果还是不行，则抛异常

# 1.1.1.1 beanExpressionResolver的evaluate方法

    @Override
    @Nullable
    public Object evaluate(@Nullable String value, BeanExpressionContext evalContext) throws BeansException {
        if (!StringUtils.hasLength(value)) {
            return value;
        }
        try {
            Expression expr = this.expressionCache.get(value);
            if (expr == null) {
                expr = this.expressionParser.parseExpression(value, this.beanExpressionParserContext);
                this.expressionCache.put(value, expr);
            }
            StandardEvaluationContext sec = this.evaluationCache.get(evalContext);
            if (sec == null) {
                sec = new StandardEvaluationContext(evalContext);
                sec.addPropertyAccessor(new BeanExpressionContextAccessor());
                sec.addPropertyAccessor(new BeanFactoryAccessor());
                sec.addPropertyAccessor(new MapAccessor());
                sec.addPropertyAccessor(new EnvironmentAccessor());
                sec.setBeanResolver(new BeanFactoryResolver(evalContext.getBeanFactory()));
                sec.setTypeLocator(new StandardTypeLocator(evalContext.getBeanFactory().getBeanClassLoader()));
                ConversionService conversionService = evalContext.getBeanFactory().getConversionService();
                if (conversionService != null) {
                    sec.setTypeConverter(new StandardTypeConverter(conversionService));
                }
                customizeEvaluationContext(sec);
                this.evaluationCache.put(evalContext, sec);
            }
            return expr.getValue(sec);
        }
        catch (Throwable ex) {
            throw new BeanExpressionException("Expression parsing failed", ex);
        }
    }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34

校验class名字符串，为空返回
获取表达式对象：从内部维护的expressionCache中查找，如果没有，则调用内部的expressionParser来parse，将结果存入expressionCache中
获取StandardEvaluationContext对象：从内部维护的evaluationCache中查找，如果没有则初始化一个：
1. 新建StandardEvaluationContext对象实例
2. 按顺序增加4个PropertyAccessor实[BeanExpressionContextAccessor\BeanFactoryAccessor\MapAccessor\EnvironmentAccessor],PropertyAccessor决定了如何从目标对象中读取或者写入Property，内部的getSpecificTargetClasses()、canRead()和canWrite()方法决定了适用的类和读写控制
3. 增加一个BeanResolver:new BeanFactoryResolver(evalContext.getBeanFactory())
4. 增加TypeLocator:new StandardTypeLocator(evalContext.getBeanFactory().getBeanClassLoader()),TypeLocator接口负责根据类型名（可能是全限定名也可能是String这种名称）获取Class对象， StandardTypeLocator会尝试在传入的ClassLoader中试图加载Class没有的话，就在"java.lang"下查找Class对象
5. TypeConverter设置为new StandardTypeConverter(beanFactory.conversionService)

# 1.1.1.1.1 获取表达式对象：expressionParser的parse方法

    @Override
    public Expression parseExpression(String expressionString, @Nullable ParserContext context) throws ParseException {
        if (context != null && context.isTemplate()) {
            return parseTemplate(expressionString, context);
        }
        else {
            return doParseExpression(expressionString, context);
        }
    }

1
2
3
4
5
6
7
8
9

如果是模板表达式则调用parseTemplate方法，否则调用doParseExpression对象，后者返回SpelExpression对象，前者调用parseExpression方法，并根据返回的数组数量决定是直接返回数组的唯一元素或者将Expression数组包裹到CompositeStringExpression对象返回

private Expression[] parseExpressions(String expressionString, ParserContext context)

将字符串转化为Expression数组，方法是如果字符串中有"#{expr}"格式的子串，则将之前面放入一个LiteralExpression对象，将字串解析后包裹在SpelExpression对象中，后面继续解析，最后将字符串分成多个Express对象，放到数组中返回。如果把LiteralExpression简写为LE,SpelExpression简写为SE，则"a#{b}c#{d}"会被parse为{LE("a"),SE{"b"},LE("c"),SE("d")}

# 1.2 校验并准备所有的MethodOverride

# 1.3 调用可能的InstantiationAwareBeanPostProcessor

# 1.4 doCreateBean方法

初始化BeanWrapper为null，从factoryBeanInstanceCache中获取已经缓存的未完全完成的FactoryBean对应的BeanWrapper,如果上一步未获取到BeanWrapper，则调用BeanFactory的createBeanInstance方法，选取合适的构造策略来构建BeanWrapper
调用可能的MergedBeanDefinitionPostProcessor修改bd，修改完成后mbd.postProcessed = true
如果允许循环引用，则提前缓存创建中的单例Bean
解析BeanWrapper中的PropertyValue
初始化实例：调用回调方法和BeanPostProcessors
处理循环引用和earlySingletonExposure
注册Bean的销毁方法：DisposableBean到BeanFactory
返回Bean实例

# 1.4.1 createBeanInstance方法

根据bd，按下列顺序尝试获取实例

InstanceSupplier：bd内部的Supplier
FactoryMethod：调用FactoryBean的对应Method
寻找使用的Constructor和autowireMode：
1. 缓存中查找：resolvedConstructorOrFactoryMethod缓存了可能的解析完成的Constructor和Factory Method，constructorArgumentsResolved标识了构造器参数列表是否解析完成
2. 如果上述缓存没有发现，则调用determineConstructorsFromBeanPostProcessors方法来获取BeanProcessor相关的Constructor数组
3. 如果上面返回的构造器数组非空（表明有BeanPostProcessor定义），或者bd里的autowireMode为AUTOWIRE_CONSTRUCTOR，或者调用初始化bean的args列表非空，或者bd的constructor-args配置非空，均表明可能需要自动注入，则调用autowireConstructor(beanName, mbd, ctors, args)方法来自动注入并初始化
4. 如果class只有一个空构造器，且配置里也没有方法constructor-args参数列表，则调用空构造器来初始化实例instantiateBean(beanName, mbd)

# 1.4.1.1 自动注入构造器的初始化Bean:autowireConstructor

# 1.4.1.2 空参数构造器初始化Bean:instantiateBean

    protected BeanWrapper instantiateBean(final String beanName, final RootBeanDefinition mbd) {
        try {
            Object beanInstance;
            final BeanFactory parent = this;
            if (System.getSecurityManager() != null) {
                beanInstance = AccessController.doPrivileged((PrivilegedAction<Object>) () ->
                        getInstantiationStrategy().instantiate(mbd, beanName, parent),
                        getAccessControlContext());
            }
            else {
                beanInstance = getInstantiationStrategy().instantiate(mbd, beanName, parent);
            }
            BeanWrapper bw = new BeanWrapperImpl(beanInstance);
            initBeanWrapper(bw);
            return bw;
        }
        catch (Throwable ex) {
            throw new BeanCreationException(
                    mbd.getResourceDescription(), beanName, "Instantiation of bean failed", ex);
        }
    }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

调用InstantiationStrategy(对于AbstractAutoWireCapableBeanFactory是CglibSubclassingInstantiationStrategy)的instantiate(mbd, beanName, parent)方法来获取bean实例
获取的实例包裹到BeanWrapperImpl对象中
initBeanWrapper：初始化BeanWrapper内部的editor和conversionService
返回创建好的BeanWrapper

# 1.4.1.2.1 CglibSubclassingInstantiationStrategy的instantiate方法

    @Override
    public Object instantiate(RootBeanDefinition bd, @Nullable String beanName, BeanFactory owner) {
        // Don't override the class with CGLIB if no overrides.
        if (!bd.hasMethodOverrides()) {
            Constructor<?> constructorToUse;
            synchronized (bd.constructorArgumentLock) {
                constructorToUse = (Constructor<?>) bd.resolvedConstructorOrFactoryMethod;
                if (constructorToUse == null) {
                    final Class<?> clazz = bd.getBeanClass();
                    if (clazz.isInterface()) {
                        throw new BeanInstantiationException(clazz, "Specified class is an interface");
                    }
                    try {
                        if (System.getSecurityManager() != null) {
                            constructorToUse = AccessController.doPrivileged(
                                    (PrivilegedExceptionAction<Constructor<?>>) clazz::getDeclaredConstructor);
                        }
                        else {
                            constructorToUse = clazz.getDeclaredConstructor();
                        }
                        bd.resolvedConstructorOrFactoryMethod = constructorToUse;
                    }
                    catch (Throwable ex) {
                        throw new BeanInstantiationException(clazz, "No default constructor found", ex);
                    }
                }
            }
            return BeanUtils.instantiateClass(constructorToUse);
        }
        else {
            // Must generate CGLIB subclass.
            return instantiateWithMethodInjection(bd, beanName, owner);
        }
    }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34

如果没有MethodOverride的情况，则调用clazz.getDeclaredConstructor()方法获取空参数构造器，存入bd的resolvedConstructorOrFactoryMethod缓存后，调用BeanUtils.instantiateClass(constructorToUse)方法来获取实例，在这个方法中，会尝试将非public的Constructor更改为public，然后调用constructor.newInstance()方法来获取对象并返回，当然，如果是Kotlin，则调用Kotlin相关的代理方法来构造

如果有MethodOverride的情况，则调用cglib框架的Enhancer相关方法，创建bd里beanClass的子类，使用反射来调用子类的构造器并返回构造的bean实例

# 1.4.1.2.2 获取的实例包裹到BeanWrapperImpl对象中，并initBeanWrapper

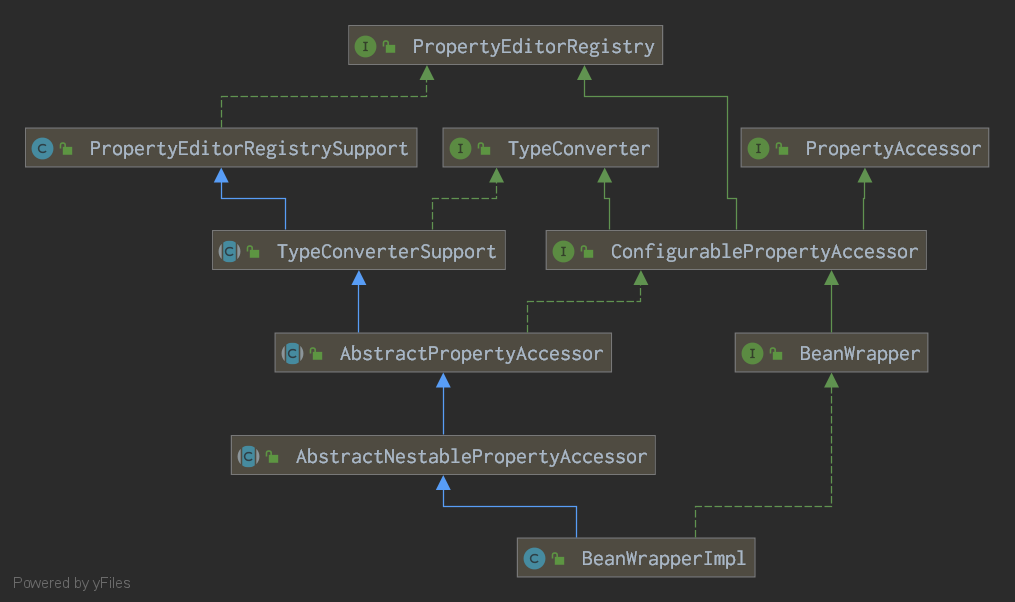

BeanWrapperImpl的类关系图如下：

BeanWrapperImpl的类关系图

# 1.4.1.2.3 BeanFactory的initBeanWrapper方法

    protected void initBeanWrapper(BeanWrapper bw) {
        bw.setConversionService(getConversionService());
        registerCustomEditors(bw);
    }

1
2
3
4

第一步是将BeanFactory的ConvertionService传入BeanWrapper，第二步是初始化BeanWrapper的自定义Editor:

    protected void registerCustomEditors(PropertyEditorRegistry registry) {
        PropertyEditorRegistrySupport registrySupport =
                (registry instanceof PropertyEditorRegistrySupport ? (PropertyEditorRegistrySupport) registry : null);
        if (registrySupport != null) {
            registrySupport.useConfigValueEditors();
        }
        if (!this.propertyEditorRegistrars.isEmpty()) {
            for (PropertyEditorRegistrar registrar : this.propertyEditorRegistrars) {
                try {
                    registrar.registerCustomEditors(registry);
                }
                catch (BeanCreationException ex) {
                    Throwable rootCause = ex.getMostSpecificCause();
                    if (rootCause instanceof BeanCurrentlyInCreationException) {
                        BeanCreationException bce = (BeanCreationException) rootCause;
                        String bceBeanName = bce.getBeanName();
                        if (bceBeanName != null && isCurrentlyInCreation(bceBeanName)) {
                            if (logger.isDebugEnabled()) {
                                logger.debug("PropertyEditorRegistrar [" + registrar.getClass().getName() +
                                        "] failed because it tried to obtain currently created bean '" +
                                        ex.getBeanName() + "': " + ex.getMessage());
                            }
                            onSuppressedException(ex);
                            continue;
                        }
                    }
                    throw ex;
                }
            }
        }
        if (!this.customEditors.isEmpty()) {
            this.customEditors.forEach((requiredType, editorClass) ->
                    registry.registerCustomEditor(requiredType, BeanUtils.instantiateClass(editorClass)));
        }
    }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35

将BeanWrapper的configValueEditorsActive设为true
遍历BeanFactory内部的PropertyEditorRegistrars，对每个registar调用registrar.registerCustomEditors(registry)方法，默认的BeanFactory会有一个ResourceEditorRegistrar
遍历BeanFactory内部的CustomPropertyEditors，对每个Editor调用BeanWrapper的registerCustomEditor(requiredType, BeanUtils.instantiateClass(editorClass)))方法

# 1.4.1.2.3.1 ResourceEditorRegistrar的`registrar.registerCustomEditors(registry)`方法

    @Override
    public void registerCustomEditors(PropertyEditorRegistry registry) {
        ResourceEditor baseEditor = new ResourceEditor(this.resourceLoader, this.propertyResolver);
        doRegisterEditor(registry, Resource.class, baseEditor);
        doRegisterEditor(registry, ContextResource.class, baseEditor);
        doRegisterEditor(registry, InputStream.class, new InputStreamEditor(baseEditor));
        doRegisterEditor(registry, InputSource.class, new InputSourceEditor(baseEditor));
        doRegisterEditor(registry, File.class, new FileEditor(baseEditor));
        doRegisterEditor(registry, Path.class, new PathEditor(baseEditor));
        doRegisterEditor(registry, Reader.class, new ReaderEditor(baseEditor));
        doRegisterEditor(registry, URL.class, new URLEditor(baseEditor));

        ClassLoader classLoader = this.resourceLoader.getClassLoader();
        doRegisterEditor(registry, URI.class, new URIEditor(classLoader));
        doRegisterEditor(registry, Class.class, new ClassEditor(classLoader));
        doRegisterEditor(registry, Class[].class, new ClassArrayEditor(classLoader));

        if (this.resourceLoader instanceof ResourcePatternResolver) {
            doRegisterEditor(registry, Resource[].class,
                    new ResourceArrayPropertyEditor((ResourcePatternResolver) this.resourceLoader, this.propertyResolver));
        }
    }

    /**
     * Override default editor, if possible (since that's what we really mean to do here);
     * otherwise register as a custom editor.
     */
    private void doRegisterEditor(PropertyEditorRegistry registry, Class<?> requiredType, PropertyEditor editor) {
        if (registry instanceof PropertyEditorRegistrySupport) {
            ((PropertyEditorRegistrySupport) registry).overrideDefaultEditor(requiredType, editor);
        }
        else {
            registry.registerCustomEditor(requiredType, editor);
        }
    }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35

代码简洁明了：

根据当前BeanWrapper的resourceLoader和propertyResolver初始化一个ResourceEditor
将上一步初始化的ResourceEditor放入BeanWrapper的overriddenDefaultEditors并管理Resource、ContextResource类型，值得注意的是，在实际根据类型获取PropertyEditor时，overriddenDefaultEditors优先级高于defaultEditors，即前者覆盖后者
类似的将ResourceEditor装饰（装饰者模式）成InputStreamEditor并关联InputSteam类，等等
根据当前的resourceLoader的ClassLoader，初始化URIEditor、ClassEditor、ClassArrayEditor并关联

# 1.4.1.2.3.2 BeanWrapper的`registerCustomEditor(requiredType, BeanUtils.instantiateClass(editorClass)))`方法

# 1.4.2 MergedBeanDefinitionPostProcessor修改bd

在AbstractApplicationContext的refresh方法中，获取完新BeanFactory后prepareBeanFactory(beanFactory)的过程中，初始化了一个ApplicationListenerDetector类型的BeanPostProcessor，并在后续的registerBeanPostProcessors(beanFactory);过程中刷新了它，这个类实现了MergedBeanDefinitionPostProcessor接口，因此在会被调用到BeanPostProcessor的postProcessMergedBeanDefinition(mbd, beanType, beanName)方法:

    @Override
    public void postProcessMergedBeanDefinition(RootBeanDefinition beanDefinition, Class<?> beanType, String beanName) {
        this.singletonNames.put(beanName, beanDefinition.isSingleton());
    }

1
2
3
4

这里内部维护的singletonNames存储了每个bean是否可以被注册成ApplicationListener的flag，初始化bean开始前，值为beanDefinition.isSingleton()，即认为所有的单例类都可注册为ApplicationListener

# 1.4.3 提前缓存创建中的单例Bean

判断依据：mbd.isSingleton() && this.allowCircularReferences && isSingletonCurrentlyInCreation(beanName)
1. bd是单例Bean
2. BeanFactory允许循环引用(默认True)
3. 单例正在创建中（所以才需要提前缓存）
存入内部缓存并更新相关属性：addSingletonFactory(beanName, () -> getEarlyBeanReference(beanName, mbd, bean));

# 1.4.3.1 将对应的SingletonFactory存入内部缓存并更新相关属性

调用到DefaultSingletonBeanRegistry类的方法：

    protected void addSingletonFactory(String beanName, ObjectFactory<?> singletonFactory) {
        Assert.notNull(singletonFactory, "Singleton factory must not be null");
        synchronized (this.singletonObjects) {
            if (!this.singletonObjects.containsKey(beanName)) {
                this.singletonFactories.put(beanName, singletonFactory);
                this.earlySingletonObjects.remove(beanName);
                this.registeredSingletons.add(beanName);
            }
        }
    }

1
2
3
4
5
6
7
8
9
10

各个缓存作用为：

singletonObjects：存储单例Bean，bean name to bean instance
singletonFactories：存储生成单例Bean的ObjectFactory，bean name to ObjectFactory
earlySingletonObjects：存储early阶段的Bean，bean name to bean instance
registeredSingletons：LinkedHashSet类型，按顺序存储注册的单例Bean的名称

# 1.4.4 解析BeanWrapper中的PropertyValue并set到Bean：`populateBean(beanName, mbd, instanceWrapper);`

校验bd
如果!mbd.isSynthetic()且BeanFactory内部有InstantiationAwareBeanPostProcessor实例，则调用postProcessAfterInstantiation方法处理BeanWrapper内部的bean实例，如果此Processor要求执行完毕后返回，则直接返回，不进行下一步操作
如果autowireMode不是AUTO，则根据bd内部的autowireMode调用响应的方法进行自动注入：
1. AUTOWIRE_BY_NAME：autowireByName(beanName, mbd, bw, newPvs)
2. AUTOWIRE_BY_TYPE：autowireByType(beanName, mbd, bw, newPvs)
如果BeanFactory内部有InstantiationAwareBeanPostProcessor实例，则
1. 调用BeanFactory的filterPropertyDescriptorsForDependencyCheck方法过滤PropertyValue，过滤掉ignoredDependencyTypes和ignoredDependencyInterfaces中定义的类型
2. 调用InstantiationAwareBeanPostProcessor的postProcessProperties处理PropertyValue
检查依赖的PropertyValue
调用applyPropertyValues方法来解析并把PropertyValue解析到Bean

# 1.4.4.1 按Name自动注入的PropertyValue处理：autowireByName方法

# 1.4.4.2 按类型自动注入的PropertyValue处理：autowireByType方法

# 1.4.4.3 applyPropertyValues方法

    protected void applyPropertyValues(String beanName, BeanDefinition mbd, BeanWrapper bw, PropertyValues pvs) {
        if (pvs.isEmpty()) {
            return;
        }

        if (System.getSecurityManager() != null && bw instanceof BeanWrapperImpl) {
            ((BeanWrapperImpl) bw).setSecurityContext(getAccessControlContext());
        }

        MutablePropertyValues mpvs = null;
        List<PropertyValue> original;

        if (pvs instanceof MutablePropertyValues) {
            mpvs = (MutablePropertyValues) pvs;
            if (mpvs.isConverted()) {
                // Shortcut: use the pre-converted values as-is.
                try {
                    bw.setPropertyValues(mpvs);
                    return;
                }
                catch (BeansException ex) {
                    throw new BeanCreationException(
                            mbd.getResourceDescription(), beanName, "Error setting property values", ex);
                }
            }
            original = mpvs.getPropertyValueList();
        }
        else {
            original = Arrays.asList(pvs.getPropertyValues());
        }

        TypeConverter converter = getCustomTypeConverter();
        if (converter == null) {
            converter = bw;
        }
        BeanDefinitionValueResolver valueResolver = new BeanDefinitionValueResolver(this, beanName, mbd, converter);

        // Create a deep copy, resolving any references for values.
        List<PropertyValue> deepCopy = new ArrayList<>(original.size());
        boolean resolveNecessary = false;
        for (PropertyValue pv : original) {
            if (pv.isConverted()) {
                deepCopy.add(pv);
            }
            else {
                String propertyName = pv.getName();
                Object originalValue = pv.getValue();
                Object resolvedValue = valueResolver.resolveValueIfNecessary(pv, originalValue);
                Object convertedValue = resolvedValue;
                boolean convertible = bw.isWritableProperty(propertyName) &&
                        !PropertyAccessorUtils.isNestedOrIndexedProperty(propertyName);
                if (convertible) {
                    convertedValue = convertForProperty(resolvedValue, propertyName, bw, converter);
                }
                // Possibly store converted value in merged bean definition,
                // in order to avoid re-conversion for every created bean instance.
                if (resolvedValue == originalValue) {
                    if (convertible) {
                        pv.setConvertedValue(convertedValue);
                    }
                    deepCopy.add(pv);
                }
                else if (convertible && originalValue instanceof TypedStringValue &&
                        !((TypedStringValue) originalValue).isDynamic() &&
                        !(convertedValue instanceof Collection || ObjectUtils.isArray(convertedValue))) {
                    pv.setConvertedValue(convertedValue);
                    deepCopy.add(pv);
                }
                else {
                    resolveNecessary = true;
                    deepCopy.add(new PropertyValue(pv, convertedValue));
                }
            }
        }
        if (mpvs != null && !resolveNecessary) {
            mpvs.setConverted();
        }

        // Set our (possibly massaged) deep copy.
        try {
            bw.setPropertyValues(new MutablePropertyValues(deepCopy));
        }
        catch (BeansException ex) {
            throw new BeanCreationException(
                    mbd.getResourceDescription(), beanName, "Error setting property values", ex);
        }
    }

下面pvs表示传入的PropertyValues

如果传入的pvs内部无PropertyValue，则不需要处理PropertyValue，直接返回
判断pvs是否已经是MutablePropertyValues对象，如果是，进一步判断是否pvs已经Converted，是的话直接调用BeanWrapper的setPropertyValues方法后返回
获取TypeConverter：读取BeanFactory内部的typeConverter属性，null的话用BeanWrapper
初始化valueResolver：new BeanDefinitionValueResolver(this, beanName, mbd, converter)
解析PropertyValue：
1. 获取PropertyName
2. 获取原PropertyValue
3. 调用valueResolver的resolveValueIfNecessary来resolve原PropertyValue，该方法里根据传入的PropertyValue的类型来决定使用哪种策略，下面pv代表当前在resolve的PropertyValue：
  1. RuntimeBeanReference：根据pv的toParent属性来决定是否去父BeanFactory找，根据beanName来查找Bean，注册到BeanFactory的dependentBeanMap中
  2. RuntimeBeanNameReference：调用BeanFactory的evaluateBeanDefinitionString方法来处理Ref的BeanName，校验是否存在Bean，存在的话返回处理后的ref内的beanName
  3. BeanDefinitionHolder：resolveInnerBean
  4. BeanDefinition：resolveInnerBean
  5. ManagedArray：对于数组内的每个对象，确认返回的List的类型后，递归调用resolveValueIfNecessary方法来处理并放入新数组返回
  6. resolveManagedList：递归调用resolveValueIfNecessary方法来处理并放入新List返回，相比Array少了确认List的内部类型的步骤
  7. ManagedSet：递归调用resolveValueIfNecessary方法来处理并放入新Set返回
  8. ManagedMap：递归调用resolveValueIfNecessary方法来处理key和value并放入新Map返回
  9. ManagedProperties：迭代每个元素，调用beanExpressionResolver处理每个Property的key和value字符串，组装成新的Properties返回
  10. TypedStringValue：见具体说明
4. 判断pv是否可转换，需要property是可写属性，并且不是数组或者嵌套属性
  1. 判断propertyName是否可写：
    1. 获取PropertyHandler：
      1. 以"."为分割符切分propertyName，获取最后部分
      2. 根据上面的结果，在BeanWrapper里寻找缓存的CachedIntrospectionResults对象中对应的属性的PropertyDescriptor（具体缓存过程参考获取CachedIntrospectionResults并缓存到BeanWrapper)，将之包装到BeanPropertyHandler中并返回，此ph中writable字段根据PropertyDescriptor对象是否有WriteMethod决定
    2. 判断此Property是否可写：上一步PropertyHandler非空的话返回其writable属性，如果为空的话，调用getPropertyValue判断是否为数组属性("a[0]")或者嵌套属性("p.name")，是的话尝试获取Value，如果成功说明可写
  2. 判断是不是数组或者嵌套属性：校验propertyName中是否有"["或者"."
5. 如果上一步判断PropertyValue可转换，则调用convertForProperty方法来转换值
6. 将上一步转换后的值，放入propertyValue的convertedValue属性中缓存起来，下次不需要重新转换（pv是从BeanDefinition中取出的）
设置PropertyValues为converted状态
将解析出的所有的PropertyValue包裹到一个新的MutablePropertyValues对象中，调用BeanWrapper对象的setPropertyValues方法，具体从MutablePropertyValues对象集成到Bean的过程参考PropertyValue到Bean内部属性

# 1.4.4.3.1 TypedStringValue的处理

调用BeanFactory的beanExpressionResolver处理字符串
获取目标类型的Class对象：
1. 获取value内部的targetType，此属性缓存了已经解析好的目标类型，如果已经是Class对象则返回，为空则下一步
2. 如果value内部的targetType是String类型，则调用BeanFactory的ClassLoader加载类对象返回
3. 如果targetType为null，则返回null
如果上一步解析出了非空的目标类型，调用typeConverter.convertIfNecessary方法来转换并返回，否则直接返回第一步处理完成的字符串

# 1.4.4.3.2 值的类型转换：BeanFactory的convertForProperty方法

先是AbstractAutowireCapableBeanFactory类

最终实际是通过调用BeanWrapperImpl中typeConverterDelegate的convertIfNecessary方法来转换出实际需要的propertyValue：

    @Nullable
    public <T> T convertIfNecessary(@Nullable String propertyName, @Nullable Object oldValue, @Nullable Object newValue,
            @Nullable Class<T> requiredType, @Nullable TypeDescriptor typeDescriptor) throws IllegalArgumentException {

        // Custom editor for this type?
        PropertyEditor editor = this.propertyEditorRegistry.findCustomEditor(requiredType, propertyName);

        ConversionFailedException conversionAttemptEx = null;

        // No custom editor but custom ConversionService specified?
        ConversionService conversionService = this.propertyEditorRegistry.getConversionService();
        if (editor == null && conversionService != null && newValue != null && typeDescriptor != null) {
            TypeDescriptor sourceTypeDesc = TypeDescriptor.forObject(newValue);
            if (conversionService.canConvert(sourceTypeDesc, typeDescriptor)) {
                try {
                    return (T) conversionService.convert(newValue, sourceTypeDesc, typeDescriptor);
                }
                catch (ConversionFailedException ex) {
                    // fallback to default conversion logic below
                    conversionAttemptEx = ex;
                }
            }
        }

        Object convertedValue = newValue;

        // Value not of required type?
        if (editor != null || (requiredType != null && !ClassUtils.isAssignableValue(requiredType, convertedValue))) {
            if (typeDescriptor != null && requiredType != null && Collection.class.isAssignableFrom(requiredType) &&
                    convertedValue instanceof String) {
                TypeDescriptor elementTypeDesc = typeDescriptor.getElementTypeDescriptor();
                if (elementTypeDesc != null) {
                    Class<?> elementType = elementTypeDesc.getType();
                    if (Class.class == elementType || Enum.class.isAssignableFrom(elementType)) {
                        convertedValue = StringUtils.commaDelimitedListToStringArray((String) convertedValue);
                    }
                }
            }
            if (editor == null) {
                editor = findDefaultEditor(requiredType);
            }
            convertedValue = doConvertValue(oldValue, convertedValue, requiredType, editor);
        }

        boolean standardConversion = false;

        if (requiredType != null) {
            // Try to apply some standard type conversion rules if appropriate.

            if (convertedValue != null) {
                if (Object.class == requiredType) {
                    return (T) convertedValue;
                }
                else if (requiredType.isArray()) {
                    // Array required -> apply appropriate conversion of elements.
                    if (convertedValue instanceof String && Enum.class.isAssignableFrom(requiredType.getComponentType())) {
                        convertedValue = StringUtils.commaDelimitedListToStringArray((String) convertedValue);
                    }
                    return (T) convertToTypedArray(convertedValue, propertyName, requiredType.getComponentType());
                }
                else if (convertedValue instanceof Collection) {
                    // Convert elements to target type, if determined.
                    convertedValue = convertToTypedCollection(
                            (Collection<?>) convertedValue, propertyName, requiredType, typeDescriptor);
                    standardConversion = true;
                }
                else if (convertedValue instanceof Map) {
                    // Convert keys and values to respective target type, if determined.
                    convertedValue = convertToTypedMap(
                            (Map<?, ?>) convertedValue, propertyName, requiredType, typeDescriptor);
                    standardConversion = true;
                }
                if (convertedValue.getClass().isArray() && Array.getLength(convertedValue) == 1) {
                    convertedValue = Array.get(convertedValue, 0);
                    standardConversion = true;
                }
                if (String.class == requiredType && ClassUtils.isPrimitiveOrWrapper(convertedValue.getClass())) {
                    // We can stringify any primitive value...
                    return (T) convertedValue.toString();
                }
                else if (convertedValue instanceof String && !requiredType.isInstance(convertedValue)) {
                    if (conversionAttemptEx == null && !requiredType.isInterface() && !requiredType.isEnum()) {
                        try {
                            Constructor<T> strCtor = requiredType.getConstructor(String.class);
                            return BeanUtils.instantiateClass(strCtor, convertedValue);
                        }
                        catch (NoSuchMethodException ex) {
                            // proceed with field lookup
                            if (logger.isTraceEnabled()) {
                                logger.trace("No String constructor found on type [" + requiredType.getName() + "]", ex);
                            }
                        }
                        catch (Exception ex) {
                            if (logger.isDebugEnabled()) {
                                logger.debug("Construction via String failed for type [" + requiredType.getName() + "]", ex);
                            }
                        }
                    }
                    String trimmedValue = ((String) convertedValue).trim();
                    if (requiredType.isEnum() && trimmedValue.isEmpty()) {
                        // It's an empty enum identifier: reset the enum value to null.
                        return null;
                    }
                    convertedValue = attemptToConvertStringToEnum(requiredType, trimmedValue, convertedValue);
                    standardConversion = true;
                }
                else if (convertedValue instanceof Number && Number.class.isAssignableFrom(requiredType)) {
                    convertedValue = NumberUtils.convertNumberToTargetClass(
                            (Number) convertedValue, (Class<Number>) requiredType);
                    standardConversion = true;
                }
            }
            else {
                // convertedValue == null
                if (requiredType == Optional.class) {
                    convertedValue = Optional.empty();
                }
            }

            if (!ClassUtils.isAssignableValue(requiredType, convertedValue)) {
                if (conversionAttemptEx != null) {
                    // Original exception from former ConversionService call above...
                    throw conversionAttemptEx;
                }
                else if (conversionService != null && typeDescriptor != null) {
                    // ConversionService not tried before, probably custom editor found
                    // but editor couldn't produce the required type...
                    TypeDescriptor sourceTypeDesc = TypeDescriptor.forObject(newValue);
                    if (conversionService.canConvert(sourceTypeDesc, typeDescriptor)) {
                        return (T) conversionService.convert(newValue, sourceTypeDesc, typeDescriptor);
                    }
                }

                // Definitely doesn't match: throw IllegalArgumentException/IllegalStateException
                StringBuilder msg = new StringBuilder();
                msg.append("Cannot convert value of type '").append(ClassUtils.getDescriptiveType(newValue));
                msg.append("' to required type '").append(ClassUtils.getQualifiedName(requiredType)).append("'");
                if (propertyName != null) {
                    msg.append(" for property '").append(propertyName).append("'");
                }
                if (editor != null) {
                    msg.append(": PropertyEditor [").append(editor.getClass().getName()).append(
                            "] returned inappropriate value of type '").append(
                            ClassUtils.getDescriptiveType(convertedValue)).append("'");
                    throw new IllegalArgumentException(msg.toString());
                }
                else {
                    msg.append(": no matching editors or conversion strategy found");
                    throw new IllegalStateException(msg.toString());
                }
            }
        }

        if (conversionAttemptEx != null) {
            if (editor == null && !standardConversion && requiredType != null && Object.class != requiredType) {
                throw conversionAttemptEx;
            }
        }

        return (T) convertedValue;
    }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161

获取customEditors中的PropertyEditor，内部执行时还会检查是否有当前需要的类的父类customEditors
如果没有customEditor但是有conversionService，则调用conversionService的convert方法来处理并返回
如果没有customEditor且现在的PropertyValue类型还是不是目标类型
1. 如果目标类型是Collection类型而且当前的PropertyValue是字符串，判断目标数组内部元素类型是不是Class或者Enum类型，如果是，则先把字符串根据","分割成字符串数组
2. 根据目标类型获取defaultEditor
3. 调用BeanWrapperImpl的doConvertValue方法来Convert当前的PropertyValue
一些特殊的转换过程：
1. 目标类型是数组：
  1. 数组内部类型是Enum型，先把单个字符串解析成字符串数组
  2. 递归调用convertIfNecessary来转换当前数组（Collection）中的值到新数组，如果只有一个对象则转换成只有一个元素的数组
2. 转换过的convertedValue是Collection元素：convertToTypedCollection方法
3. 转换过的convertedValue是Map元素：convertToTypedMap方法
4. 转换过的convertedValue是数组且只有一个元素：convertedValue = convertedValue[0]
如果目标类型是String类且当前转换过的值是原生类型，返回convertedValue.toString()
如果convertedValue是String但目标类型不是String型：
1. 如果目标类型不是接口也不是Enum型，那么尝试调用目标Class的参数为一个String的构造方法，并将convertedValue传入
2. 如果目标类型是Enumerate，那么调用attemptToConvertStringToEnum来尝试转换下convertedValue
如果convertedValue是Number且目标类型也是Number的子类型，调用NumberUtils的方法来进行转换
如果convertedValue == null 且目标类型是Optional型，则convertedValue = Optional.empty();
如果目标类型和当前的convertedValue = Optional.empty();
如果convertedValue还是与目标类型不匹配，则调用convertionService最后转换一下并返回
最后返回转换好的值，或者抛出异常

# 1.4.3.2.1. BeanWrapperImpl的doConvertValue方法

    @Nullable
    private Object doConvertValue(@Nullable Object oldValue, @Nullable Object newValue,
            @Nullable Class<?> requiredType, @Nullable PropertyEditor editor) {

        Object convertedValue = newValue;

        if (editor != null && !(convertedValue instanceof String)) {
            // Not a String -> use PropertyEditor's setValue.
            // With standard PropertyEditors, this will return the very same object;
            // we just want to allow special PropertyEditors to override setValue
            // for type conversion from non-String values to the required type.
            try {
                editor.setValue(convertedValue);
                Object newConvertedValue = editor.getValue();
                if (newConvertedValue != convertedValue) {
                    convertedValue = newConvertedValue;
                    // Reset PropertyEditor: It already did a proper conversion.
                    // Don't use it again for a setAsText call.
                    editor = null;
                }
            }
            catch (Exception ex) {
                // Swallow and proceed.
            }
        }

        Object returnValue = convertedValue;

        if (requiredType != null && !requiredType.isArray() && convertedValue instanceof String[]) {
            // Convert String array to a comma-separated String.
            // Only applies if no PropertyEditor converted the String array before.
            // The CSV String will be passed into a PropertyEditor's setAsText method, if any.
            convertedValue = StringUtils.arrayToCommaDelimitedString((String[]) convertedValue);
        }

        if (convertedValue instanceof String) {
            if (editor != null) {
                // Use PropertyEditor's setAsText in case of a String value.
                String newTextValue = (String) convertedValue;
                return doConvertTextValue(oldValue, newTextValue, editor);
            }
            else if (String.class == requiredType) {
                returnValue = convertedValue;
            }
        }

        return returnValue;
    }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48

如果入参不是String类型，则调用editor的setValue()方法来转换，java.beans.PropertyEditorSupport类中的实现是setValue()方法不进行任何转换，而对于大部分org.springframework.beans.propertyeditors包下的子类，都是直接继承但没有复写其实现方法的，在这里调用是因为确实有部分PropertyEditor覆写了这个方法的罗技，比如CustomNumberEditor，会在入参是Number类型值的时候，尝试调用目标类型的相关静态方法来转换（BigInteger.valueOf(),Double.valueOf,new BigDecimal(number.toString())等)，这里还有一个小细节，如果确实发生了转换（返回值不等于原值），说明setValue()方法确实被覆写且发生了转换，则editor被置为null，不再调用setAsText()方法
如果入参是String数组但目标不是数组类型，则先将入参数组合并为用","分割的单个字符串
如果入参是String对象且editor不为空，则调用doConvertTextValue(oldValue, newTextValue, editor)方法转换并返回:
1. 尝试调用editor的setValue(oldValue)
2. 调用editor的setAsText(newTextValue)方法，对于CustomNumberEditor(即使叫这个名字，在BeanWrapperImpl中依然是defaultEditors的一员)，实际还是根据目标的类型，调用相关静态方法来转换（Integer.decode(trimmed),BigInteger.valueOf(),Double.valueOf,new BigDecimal(number.toString())等)，值传入value属性中
如果editor为空且目标类型是String，则返回原值

# 1.4.5 初始化实例：调用回调方法和BeanPostProcessors

调用Bean内部的回调方法
调用各个BeanPostProcessor的postProcessBeforeInitialization方法
调用Bean的相关property已经解析完后调用的方法
调用各个BeanPostProcessor的postProcessAfterInitialization方法

# 1.4.5.1 Bean的回调方法

在Spring中Aware接口用来表示回调，实现了下面Aware子接口的Bean，会在此阶段被调用接口对应的方法：

BeanNameAware：((BeanNameAware) bean).setBeanName(beanName)
BeanClassLoaderAware：((BeanClassLoaderAware) bean).setBeanClassLoader(bcl);
BeanFactoryAware：((BeanFactoryAware) bean).setBeanFactory(AbstractAutowireCapableBeanFactory.this);

# 1.4.5.2 BeanPostProcessor的postProcessBeforeInitialization方法

不同的BeanProcessor有不同的实现：

AbstractContextAwareProcessor来说，是调用上下文相关的BeanAware实现的回调方法
PostProcessorRegistrationDelegate:返回原值
ApplicationListenerDetector:返回原值

# 1.4.5.3 调用Bean的相关property已经解析完后调用的方法

((InitializingBean) bean).afterPropertiesSet()

# 1.4.6 处理循环引用和earlySingletonExposure

    if (earlySingletonExposure) {
        Object earlySingletonReference = getSingleton(beanName, false);
        if (earlySingletonReference != null) {
            if (exposedObject == bean) {
                exposedObject = earlySingletonReference;
            }
            else if (!this.allowRawInjectionDespiteWrapping && hasDependentBean(beanName)) {
                String[] dependentBeans = getDependentBeans(beanName);
                Set<String> actualDependentBeans = new LinkedHashSet<>(dependentBeans.length);
                for (String dependentBean : dependentBeans) {
                    if (!removeSingletonIfCreatedForTypeCheckOnly(dependentBean)) {
                        actualDependentBeans.add(dependentBean);
                    }
                }
                if (!actualDependentBeans.isEmpty()) {
                    throw new BeanCurrentlyInCreationException(beanName,
                            "Bean with name '" + beanName + "' has been injected into other beans [" +
                            StringUtils.collectionToCommaDelimitedString(actualDependentBeans) +
                            "] in its raw version as part of a circular reference, but has eventually been " +
                            "wrapped. This means that said other beans do not use the final version of the " +
                            "bean. This is often the result of over-eager type matching - consider using " +
                            "'getBeanNamesOfType' with the 'allowEagerInit' flag turned off, for example.");
                }
            }
        }
    }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

如果当前BeanName对应的Bean还未放入singletonObjects且处于创建过程中，并且已放入this.earlySingletonObjects缓存中，则替换当前创建完成的Bean为this.earlySingletonObjects缓存的Bean

# 1.4.7 注册Bean的销毁方法

    protected void registerDisposableBeanIfNecessary(String beanName, Object bean, RootBeanDefinition mbd) {
        AccessControlContext acc = (System.getSecurityManager() != null ? getAccessControlContext() : null);
        if (!mbd.isPrototype() && requiresDestruction(bean, mbd)) {
            if (mbd.isSingleton()) {
                // Register a DisposableBean implementation that performs all destruction
                // work for the given bean: DestructionAwareBeanPostProcessors,
                // DisposableBean interface, custom destroy method.
                registerDisposableBean(beanName,
                        new DisposableBeanAdapter(bean, beanName, mbd, getBeanPostProcessors(), acc));
            }
            else {
                // A bean with a custom scope...
                Scope scope = this.scopes.get(mbd.getScope());
                if (scope == null) {
                    throw new IllegalStateException("No Scope registered for scope name '" + mbd.getScope() + "'");
                }
                scope.registerDestructionCallback(beanName,
                        new DisposableBeanAdapter(bean, beanName, mbd, getBeanPostProcessors(), acc));
            }
        }
    }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

如果Bean符合下面任何条件，则认为Bean有自己的destroy方法:

实现了DisposableBean接口
实现了AutoCloseable接口
有自定义的destroyMethodName：
1. "(inferred)":判断Bean的类型中是否有"close"方法或者"shutdown"方法
2. 其他非空Name

如果Bean有自己的Destroy方法，或者BeanFactory有DestructionAwareBeanPostProcessor，说明需要注册DisposableBean，那么初始化一个DisposableBeanAdapter适配器，与BeanName关联

一水轩

Choose mode

SpringContext(6)-CreateBean

# SpringContext(6)-CreateBean

# 1.1 解析Bean对应的BeanClass

# 1.1.1 doResolveBeanClass

# 1.1.1.1 beanExpressionResolver的evaluate方法

# 1.1.1.1.1 获取表达式对象：expressionParser的parse方法

# 1.2 校验并准备所有的MethodOverride

# 1.3 调用可能的InstantiationAwareBeanPostProcessor

# 1.4 doCreateBean方法

# 1.4.1 createBeanInstance方法

# 1.4.1.1 自动注入构造器的初始化Bean:autowireConstructor

# 1.4.1.2 空参数构造器初始化Bean:instantiateBean

# 1.4.1.2.1 CglibSubclassingInstantiationStrategy的instantiate方法

# 1.4.1.2.2 获取的实例包裹到BeanWrapperImpl对象中，并initBeanWrapper

# 1.4.1.2.3 BeanFactory的initBeanWrapper方法

# 1.4.1.2.3.1 ResourceEditorRegistrar的`registrar.registerCustomEditors(registry)`方法

# 1.4.1.2.3.2 BeanWrapper的`registerCustomEditor(requiredType, BeanUtils.instantiateClass(editorClass)))`方法

# 1.4.2 MergedBeanDefinitionPostProcessor修改bd

# 1.4.3 提前缓存创建中的单例Bean

# 1.4.3.1 将对应的SingletonFactory存入内部缓存并更新相关属性

# 1.4.4 解析BeanWrapper中的PropertyValue并set到Bean：`populateBean(beanName, mbd, instanceWrapper);`

# 1.4.4.1 按Name自动注入的PropertyValue处理：autowireByName方法

# 1.4.4.2 按类型自动注入的PropertyValue处理：autowireByType方法

# 1.4.4.3 applyPropertyValues方法

# 1.4.4.3.1 TypedStringValue的处理

# 1.4.4.3.2 值的类型转换：BeanFactory的convertForProperty方法

# 1.4.3.2.1. BeanWrapperImpl的doConvertValue方法

# 1.4.5 初始化实例：调用回调方法和BeanPostProcessors

# 1.4.5.1 Bean的回调方法

# 1.4.5.2 BeanPostProcessor的postProcessBeforeInitialization方法

# 1.4.5.3 调用Bean的相关property已经解析完后调用的方法

# 1.4.6 处理循环引用和earlySingletonExposure

# 1.4.7 注册Bean的销毁方法

一水轩

SpringContext(6)-CreateBean

# SpringContext(6)-CreateBean

# 1.1 解析Bean对应的BeanClass

# 1.1.1 doResolveBeanClass

# 1.1.1.1 beanExpressionResolver的evaluate方法

# 1.1.1.1.1 获取表达式对象：expressionParser的parse方法

# 1.2 校验并准备所有的MethodOverride

# 1.3 调用可能的InstantiationAwareBeanPostProcessor

# 1.4 doCreateBean方法

# 1.4.1 createBeanInstance方法

# 1.4.1.1 自动注入构造器的初始化Bean:autowireConstructor

# 1.4.1.2 空参数构造器初始化Bean:instantiateBean

# 1.4.1.2.1 CglibSubclassingInstantiationStrategy的instantiate方法

# 1.4.1.2.2 获取的实例包裹到BeanWrapperImpl对象中，并initBeanWrapper

# 1.4.1.2.3 BeanFactory的initBeanWrapper方法

# 1.4.1.2.3.1 ResourceEditorRegistrar的registrar.registerCustomEditors(registry)方法

# 1.4.1.2.3.2 BeanWrapper的registerCustomEditor(requiredType, BeanUtils.instantiateClass(editorClass)))方法

# 1.4.2 MergedBeanDefinitionPostProcessor修改bd

# 1.4.3 提前缓存创建中的单例Bean

# 1.4.3.1 将对应的SingletonFactory存入内部缓存并更新相关属性

# 1.4.4 解析BeanWrapper中的PropertyValue并set到Bean：populateBean(beanName, mbd, instanceWrapper);

# 1.4.4.1 按Name自动注入的PropertyValue处理：autowireByName方法

# 1.4.4.2 按类型自动注入的PropertyValue处理：autowireByType方法

# 1.4.4.3 applyPropertyValues方法

# 1.4.4.3.1 TypedStringValue的处理

# 1.4.4.3.2 值的类型转换：BeanFactory的convertForProperty方法

# 1.4.3.2.1. BeanWrapperImpl的doConvertValue方法

# 1.4.5 初始化实例：调用回调方法和BeanPostProcessors

# 1.4.5.1 Bean的回调方法

# 1.4.5.2 BeanPostProcessor的postProcessBeforeInitialization方法

# 1.4.5.3 调用Bean的相关property已经解析完后调用的方法

# 1.4.6 处理循环引用和earlySingletonExposure

# 1.4.7 注册Bean的销毁方法

# 1.4.1.2.3.1 ResourceEditorRegistrar的`registrar.registerCustomEditors(registry)`方法

# 1.4.1.2.3.2 BeanWrapper的`registerCustomEditor(requiredType, BeanUtils.instantiateClass(editorClass)))`方法

# 1.4.4 解析BeanWrapper中的PropertyValue并set到Bean：`populateBean(beanName, mbd, instanceWrapper);`
